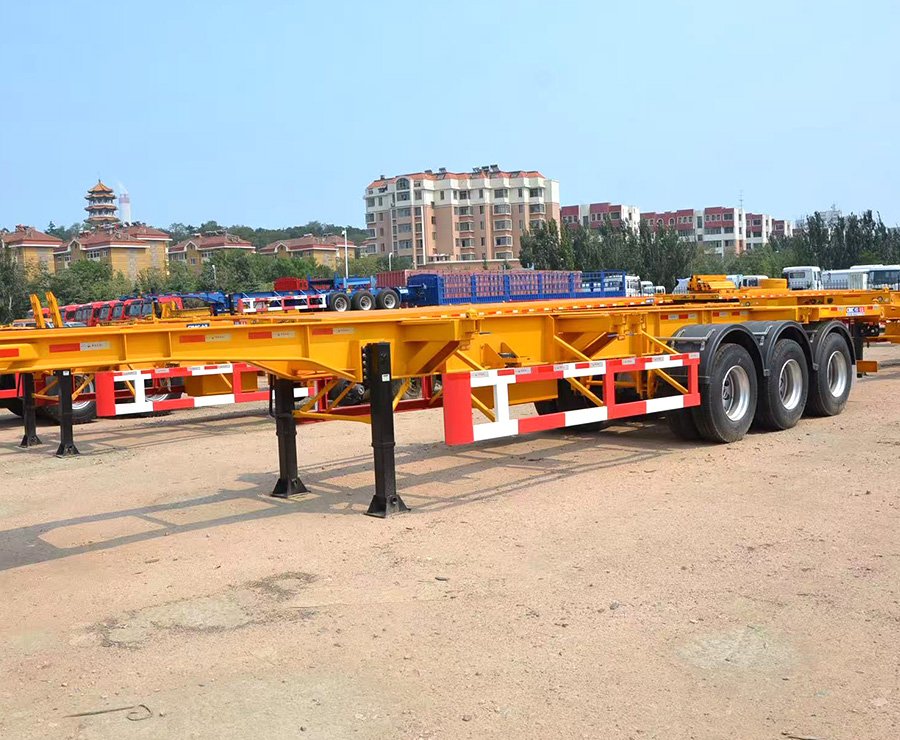

3 Axle 40FT Skeleton Semi Trailer

Product Description:

A 3 Axle 40FT Skeleton Semi Trailer, also known as a container chassis or simply a frame trailer, is a specialized trailer specifically designed for transporting 40-foot containers.A 40-foot three-axis container frame trailer, also known as a container chassis or simply a frame trailer, is a specialized trailer specifically designed for transporting 40-foot containers. These trailers are key components of multimodal transport and can seamlessly transport containers between different modes of transportation.

The trailer frame is typically made of high-strength steel or aluminum, aiming to provide a sturdy base while minimizing weight. The open-frame design allows for easy loading and unloading of containers.

inquiry now add to cart

Specifications

Overall dimension	12,500×2,550×1,650mm (Customization supported)
Loading weight	40T/50T/60T
Function	Carries one 40ft or two 20ft or one 20ft lSO container
Axle	BPW/FUWA/Factory brand, 13T/16T * 3
Suspension system	Mechanical Suspension
Main beam	Beam height 500mm, Top plate 14mm, Bottom plate 16mm, Middle plate 10mm.
Container lock	12 PCS
Tire	Triangle/ Linglong/ Longmarch brand, 11.00R20/ 12.00R22.5/ 12.00R20/ 315/80R22.5 12 pcs (include one spare tire)
King Pin	3”(90mm) / 2.5” (50mm)
Spare wheel holder	1 (Customization supported)
Toolbox	1 (Customization supported)
Landing gear	JOST/ FUWA/ Factory brand Standard 28 tons
Braking system	Dual line pneumatic brake system
ABS	WABCO brand, 4S/2M
Electrical system	Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light
Side guard	Standard
Paint color	Customization supported
Packaging	Waxing before departure

Inquiry Now

Product Name:3 Axle 40FT Skeleton Semi Trailer
