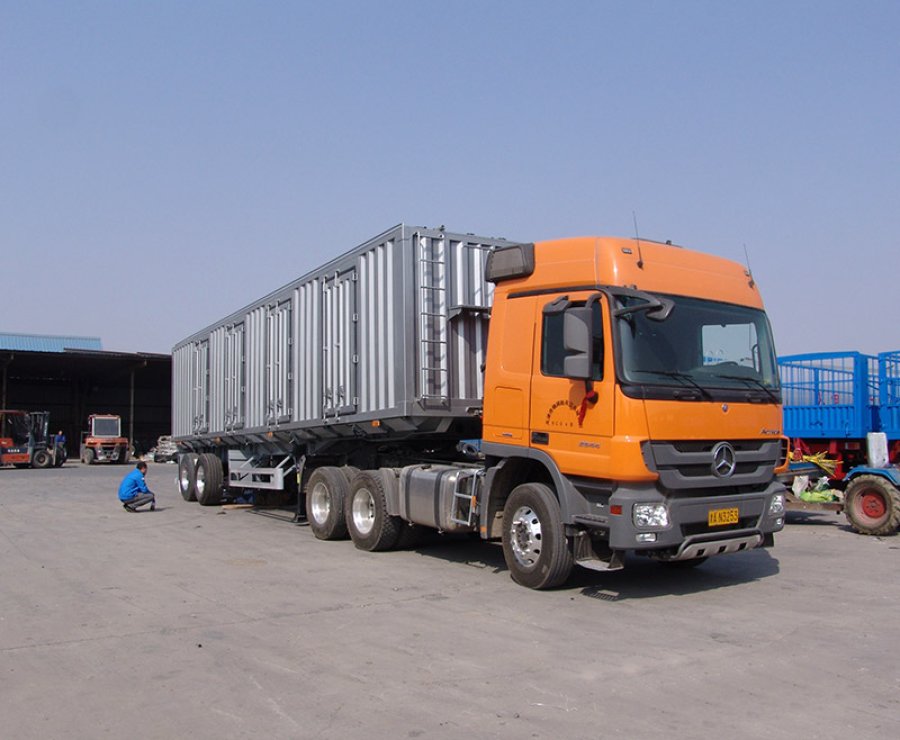

3 Axle Van Box Semi Trailer

Product Description:

Cargo semi-trailer is a professional vehicle designed for modern logistics and transportation needs, playing a key role in many transportation scenarios. The dropside smei trailer adopts a sturdy integral frame structure with excellent load-bearing capacity and stability, effectively ensuring long-distance transportation and driving safety under complex road conditions.

inquiry now add to cart

Specifications

Overall dimension	12,500×2,550×3,800mm (Customization supported)
Loading weight	40T/50T/60T
Cargo box	12,500×2,500×2,000mm (Customization supported)
Axle	BPW/FUWA/Factory brand, 13T/16T * 3
Suspension system	Mechanical Suspension
Main beam	Beam height 500mm, Top plate 14mm, Bottom plate 16mm, Middle plate 10mm. (Customization supported)
Tire	Triangle/ Linglong/ Longmarch brand, 11.00R20/ 12.00R22.5/ 12.00R20/ 315/80R22.5 12 pcs (include one spare tire)
King Pin	3”(90mm) / 2.5” (50mm)
Spare wheel holder	1 (Customization supported)
Toolbox	1 (Customization supported)
Landing gear	JOST/ FUWA/ Factory brand Standard 28 tons
Braking system	Dual line pneumatic brake system
ABS	WABCO brand, 4S/2M
Electrical system	Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light
Side guard	Standard
Paint color	Customization supported
Packaging	Waxing before departure

Inquiry Now

Product Name:3 Axle Van Box Semi Trailer
