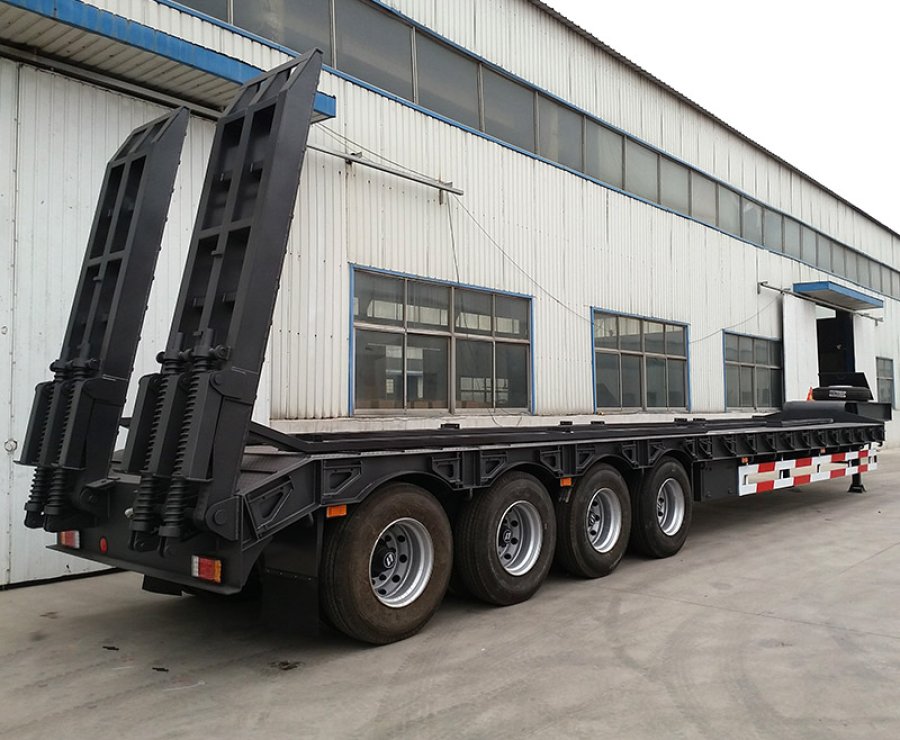

4 Axle 100 Tons Low-bed Semi Trailer

Product Description:

Low bed truck trailer are mainly used to transport oversized, overweight, non-detachable cargo, such as engineering machinery, large equipment and steel structures. Low bed trailers' low design facilitates loading and transporting high height cargo, and is an important tool for heavy logistics transportation.

inquiry now add to cart

Specifications

Overall dimension	13,000×3,000×1,900mm (Customization supported)
Loading weight	60T/80T/100T
Worktable size	9,000× 3,000 × 1260mm (Customization supported)
Axle	BPW/FUWA/Factory brand, 13T/16T/20T * 4
Suspension system	Mechanical Suspension
Main beam	Beam height 500mm, Top plate 20mm, Bottom plate 25mm, Middle plate 20mm. (Customization supported)
Bottom plate	4mm checkered plate (Customization supported)
Ladder	Hydraulic ladder/ spring ladder
Tire	Triangle/ Linglong/ Longmarch brand, 8.25R20/ 9.00R20/ 11.00R20/ 12.00R22.5/ 12.00R20/ 315/80R22.5 16 pcs (include one spare tire)
King Pin	3”(90mm) / 2.5” (50mm)
Spare wheel holder	1 (Customization supported)
Toolbox	1 (Customization supported)
Landing gear	JOST/ FUWA/ Factory brand Standard 28 tons
Braking system	Dual line pneumatic brake system
ABS	WABCO brand, 4S/2M
Electrical system	Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light
Side guard	Standard
Paint color	Customization supported
Packaging	Waxing before departure
