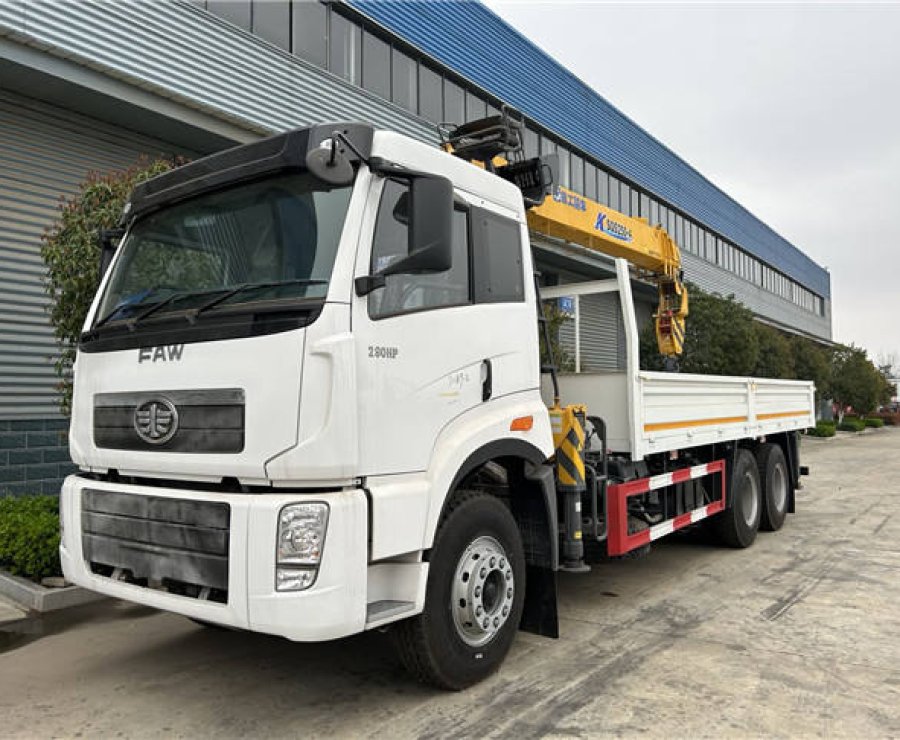

FAW New J5P 6×4 Mounted Crane Truck

Product Description:

Crane trucks, or truck-mounted cranes, utilize hydraulic systes and telescopic components for lifting, rotating, and hoistingcargo. They feature a truck chassis, cargo compartment, power.ake-off, and crane mechanism.

Truck-mounted cranes offer benefits such as enhanced mobilitquick operational transfers, and combined lifting andncy. Their booms allow for full 360-degree rotation, while theirtransportation capabilities, resulting in improved resource efficiecompact design supports flexible operations in tight spaces and te handling of irregular loads.

inquiry now add to cart

Specifications

Engine
Engine model	WP10.270E32
Emission standards	EURO 3
Engine type	Diesel engine
Engine displacement (L)	9.726
Rated power of engine (kw/hps)	199
Maximum torque (N.m/rpm)	700/1500
Gearbox model	Manual 9JS119T
Rear axle model/load (T)	double10T
Rear axle speed ratio	5.428
Cabin type	Left side driving, flat head,one row with sleeping bed, electric window
Drive form	6x4
Tire type/number	11.00R20/10+1 pcs
Curb weight (Kg)	12155
Rated load capacity (Kg)	20000
Maximum speed (km/h)	95
Minimum ground clearance (mm)	300
Overall dimensions (LxWxH)mm	11900x2500x3800
Cargo box dimension(mm)	8500x2300x800
Wheelbase(mm)	5700+1350
Rated voltage (V)	24

Inquiry Now

Product Name:FAW New J5P 6×4 Mounted Crane Truck
