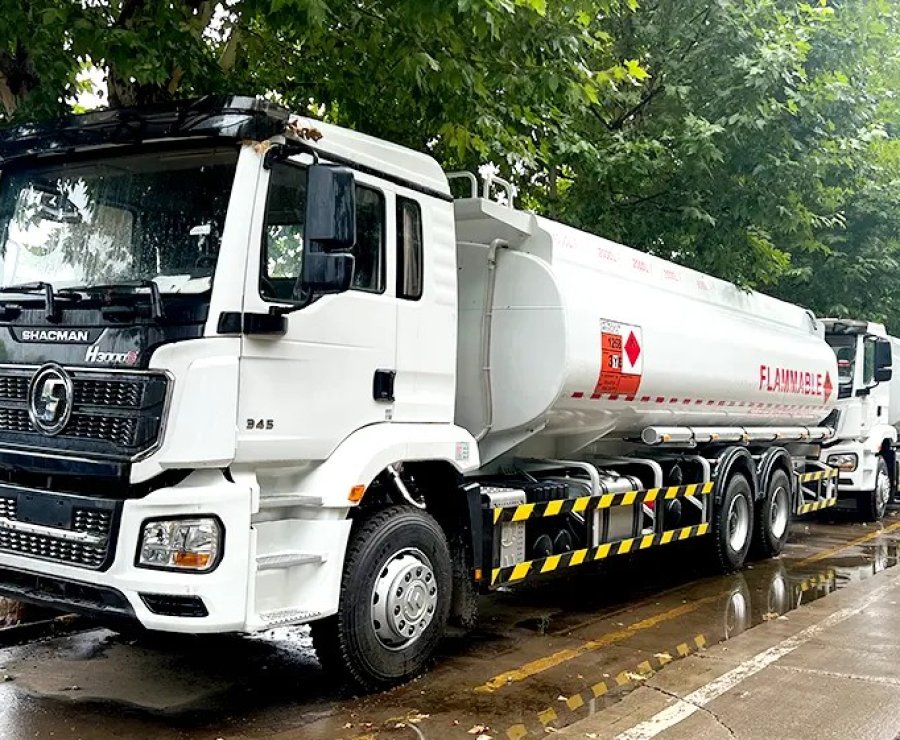

SHACMAN H3000 6×4 Fuel Tank Truck

Product Description:

The tank features a double-layer explosion-proof structure, combined with an anti-static coating and automatic pressure relief valves, significantly enhancing safety during transportation. Additionally, the Shacman H3000S 6×4 Fuel Tanker Truck is standardly equipped with a hydraulic self-priming pump and precise metering devices, enabling rapid loading/unloading and flow control, to meet the flexible refueling needs of scenarios such as gas stations and construction sites.

inquiry now add to cart

Specifications

Transport type	Tanker
Logistics type	oil
Distance(km)	≤300
Road type	Paved roads
Drive	6×4
Max weight(t)	≤50
Max speed	90
Loaded speed(km)	50~70
Vehicle model	SX5315GYYHR456
Engine	ISME345 30
Emission standard	Euro Ⅲ
Displacement	9.726L
Rated output	250kW
Max.torque	1250N•m
Transmission	10JSD180+QH50
Clutch	430
Frame	850×300(8+5)
Front axle	MAN 7.5T
Rear axle	13STR double reduction 5.262
Tire	12.00R20
Front Suspension	Multi leaf springs
Rear Suspension	Multi leaf springs
Fuel	Diesel
Capacity of the fuel tank	400L ( Aluminum shell )
Battery	165Ah
Dimensions(L×W×H)	11425x2490x3450
Wheelbase	1800+4575+1400
Volume ( m³)	40
Approach/Departure angle(°)	20/18
Max.gradeability(%)	34
Cab
Type	MAN H3000S, lengthened flat roof
Equipments	◆Rear window ◆Manual sunroof ◆Hydraullc driver seat with seatbelts ◆Hydraulic suspension of cab ◆Automated air conditioning ◆Electric window ◆Radio with MP3 player
Optional	●Air cushioned drivers seat ●Full vehicle WABCO valve ●Central locking

Inquiry Now

Product Name:SHACMAN H3000 6×4 Fuel Tank Truck
