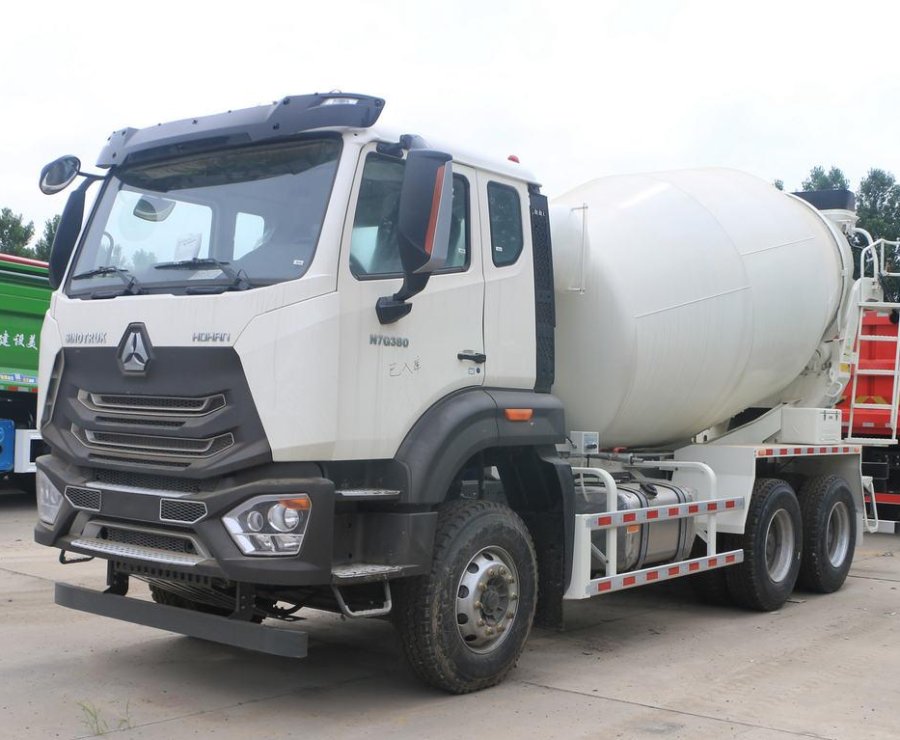

SINOTRUK HOWO NX (HAOHAN) 6×4 Mixer Truck

Product Description:

The SINOTRUCK HOWO NX mixer truck adopts the new powder coating technology to provide comprehensive powder coating treatment for the tank, chassis and accessories, which significantly improves the corrosion resistance and anti-aging performance of the upper components, ensuring that the vehicle remains stable and reliable in harsh working environments, marine transportation and areas with variable climates, which results in a longer service life for the mixer trucks using the powder coating technology. In contrast, conventional paints may flake or fade after repeated use.

inquiry now add to cart

Specifications

Cab	Driving type	Left Hand Drive(RHD is optional)
Cab	Cab type	MAN flat roof cab with one sleeper bed,with A/C
Engine	Engine Model	MC05.18-40
	Type	6-cylinder in-line with water cooling, supercharging & inter cooling
	Displacement	9.726L
	Engine output	180hp/2200 rpm
	Max. torque	1350 NM /1300-1600rpm
Equipments	Transmission (gear box)	HW19710,10 speed transmission
	Clutch	D430 Diaphragm type
	Steering	ZF8098
	Front axle	HF9 drum type, 9tons
	Rear axle	HC16 Double reduction Ratio=5.73
	Fuel tank	300L
	Tires	12.00R20, 10+1spare
Weights	Kerb. mass	13220kg
	Total mass	25000kg
	Rated payload	11650kg
Performance	Max. speed (km/h)	75
	Max. gradeability(%)	≥50
	Minimum ground clearance(mm)	314
	Minimum turning diameter(m)	17
Dimensions	Wheel base (mm)	3975+1350
	Front/rear overhang (mm)	1500/2365
	Front/rear wheel track(mm)	2022/1850
	Approach/departure angle	16/24 degree
	Overall dimension(mm)	9790×2496×3885
Mixer Drum Body	Tank body size(mm)	10 M3
	Rotating speed	0-18 r/min
	Discharged remain ratio	<0.2%
	Water Tank	400L
	Hyraulic pump and moter	EATON089 (America)
	Decelerator	P68 (Italy)
