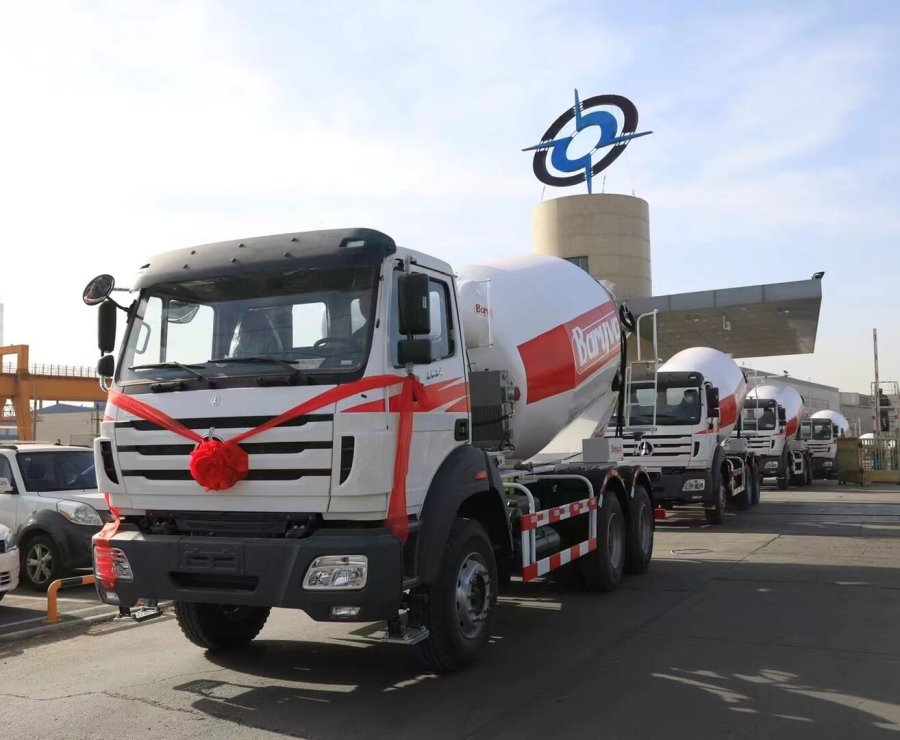

BEIBEN 6×4 Mixer Truck

Product Description:

This 6x4 concrete mixer truck is equipped with a 340 HP engine, a 9.speed transmission, a dual-reduction rear axle, and a 10 m' mixing drum.Powered by a Weichai engine with a maximum output of 430 HP at 1900rpm, it delivers strong performance for various road conditions andgradients.

inquiry now add to cart

Specifications

Carriage volume:		8m³
Dimension(Lx W xH)(unloaded)(mm)		9040×2496×3850
Approaching angle/Departure angle(°)		19/23
Overhang(front/rear) (mm)		1500/1870
Wheel base (mm)		3800+1350
Max speed(km/h)		75
Curb weight(kg)		13220
Engine (Steyr technology, made in China)	Model	WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling
	Fuel type	Diesel
	Power, max(kw/rpm)	247/2200
	Emission	EURO 2
Fuel tanker capacity (L)		300
Transmission	Model	HW15710,10 forward&2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Front axle	HF9
Rear axle	HC16
Tyre	12.00R20
Electrical system	Battery	2X12V/165Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V

Inquiry Now

Product Name:BEIBEN 6×4 Mixer Truck
