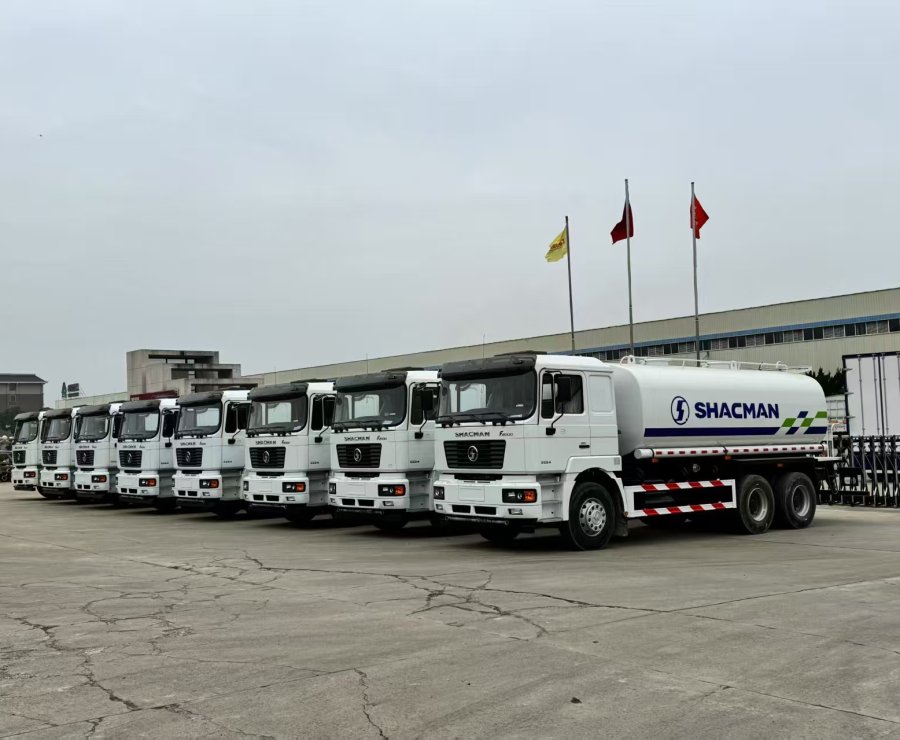

SHACMAN F2000 6×4 Water Bowser Truck

Product Description:

As a classic model of Shaanxi Automobile Group, SHACMAN F2000 6x4 sprinkler truck is specially designed for municipal sanitation, engineering dust reduction and road maintenance with more than 30 years of technological accumulation. It is equipped with Weichai WP10.290E32 diesel engine, outputs 290 horsepower, matches 10-speed manual transmission, and has a maximum speed of 85km/h, combining power and fuel economy. The vehicle adopts 6x4 drive form, wheelbase 4300+1400mm, curb weight 15.8 tons, maximum load 20 tons, equipped with 380L fuel tank, to meet the needs of long-distance operations.

inquiry now add to cart

Specifications

Model		SX5255GYSJM434
Drive type		6×4
GCW(kg)		35000
Max. speed (km/h)		85
Wheel base (mm)		4375+1400
Engine	Brand	WEICHAI
	Model	WP10.290E32 EURO II
	Rated output power	290hp
	Max.torque	1160N.m
	Displacement(L)	9.726L
Fuel tank capacity (L)		380L
Tyre		12R22.5 (Wheel rim decorative cover) 10+1
Transmission	Model	Fast 9JS135-Iron Shell-QH50
Front axle		MAN 7.5T front axle 7.5tMAN
Driving axle		13T STR double reduction driving axle 4.8
Steering		ZF technology(left-hand drive)
Frame		850×300(8+5)
Suspension	Front Suspension	Multi leaf springs
	Rear Suspension	Multi leaf springs
Others		F2000 extended flat-top cab without top deflector water truck Aurora White Hot zone air conditioner Manual window shaker Hydraulic main seat Single berth Ordinary rearview mirror Ordinary side air filter Copper water tank Ordinary exhaust Domestic steering gear Ordinary steering wheel Domestic six-channel ABS 165Ah maintenance-free battery Manual flip Fixed boarding pedal Fiberglass bumper F2000 front traction pin and rear traction seat Front stabilizer bar Chassis sprayed with polyurea Reinforced version Large box color: same color as the cab
Box		20m³ water tank Front spray after sprinkling device

Inquiry Now

Product Name:SHACMAN F2000 6×4 Water Bowser Truck
