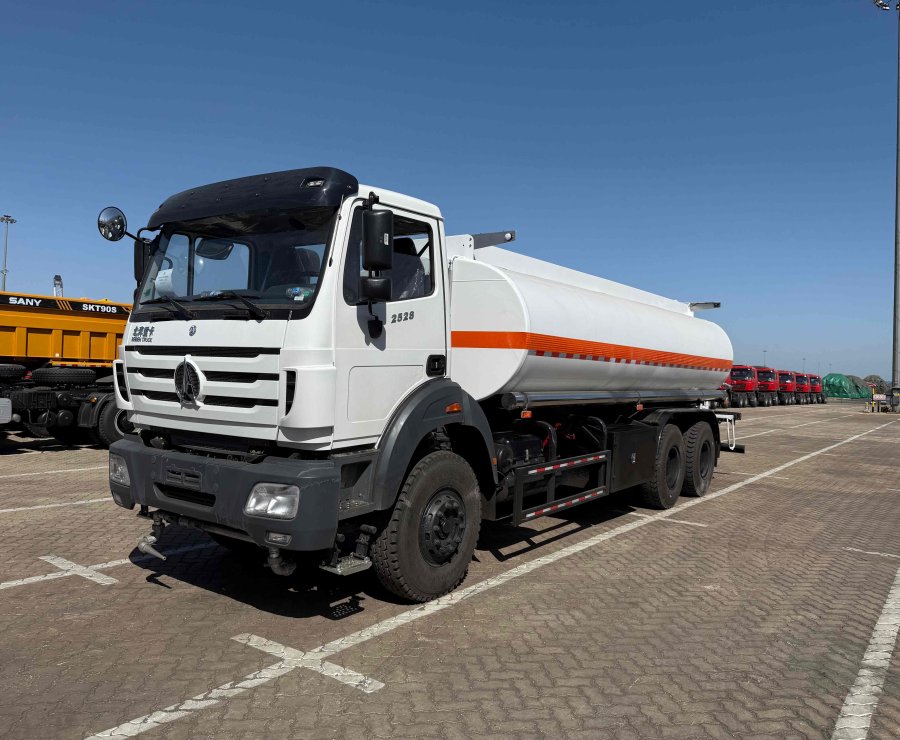

BEIBEN NG80 6×4 Water Bowser Truck

Driving type

LHD/RHD

Dimension(Lx W xH)（unloaded）

10576×2500×3430

Wheel base(mm)

5050+1450

Max speed（km/h）

90

Curb weight（kg）

12000

Loading Weight（kg）

25,000

Engine

Steyr technology, made in China

Model:WD615.340

water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection With the exhaust valve brake, EGR (gas exhausted recycling), deisel engine

Displacement（L）

9.726/Diesel

Bore X stroke(mm)

126/130

Max power（kw/rpm）

247/2200 (340hp)

Max torque（Nm/rpm）

1350/1300-1600

Emission

EURO II

Fuel tanker（L）

400L steel fuel tanker

Clutch

Model

430 Diaphragm type

Gearbox

Model

9JS150 (Fuller)

mechanism,

9gears, 1reverse gear

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame

Fish belly, shape, variable width, variable sections, side beam structure

Front axle (Mercedes Benz Technology)

7.5T Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

13T Double-shoe pneumatic brake, casting, double reduction driving axles with inter-wheel & inter-axles differential locks

Tyre

12.00R20 Radial tyre Number of tyre:10+1 spare

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Mercedes-Benz technology NG80B long Cabin, single sleeper with air-conditioner

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

                       Water tank

Tank capacity

20,000 liters

Thickness of the tanker body

the thickness of the shell is 5mm approx;

Dish ends

the thickness of the shell is 6mm approx;
