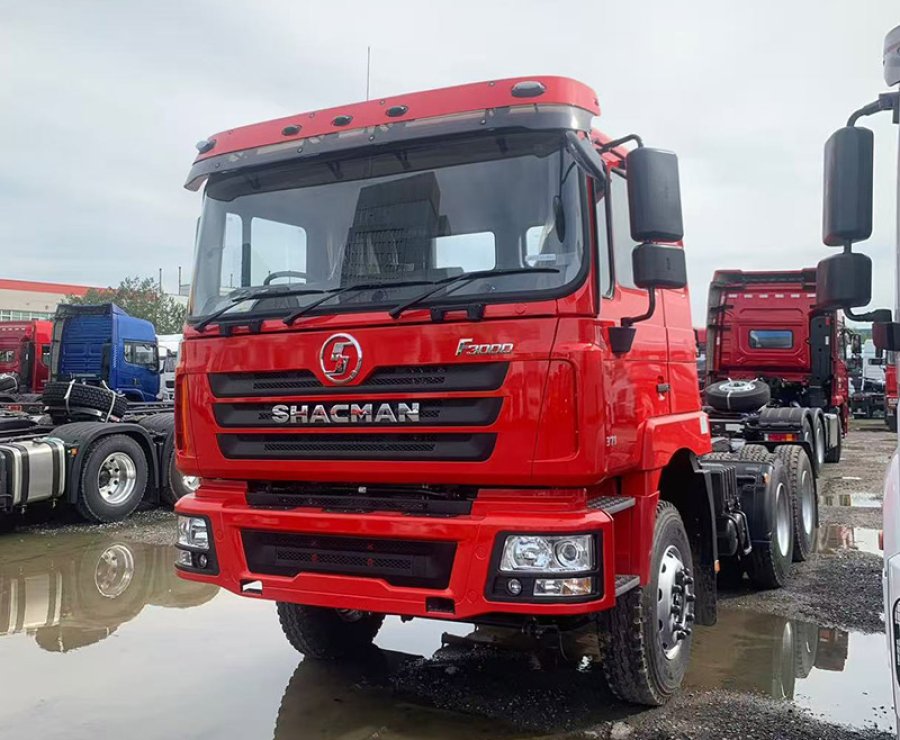

SHACMAN F3000 6×4 Tractor Truck

Product Description:

The SHACMAN F3000 6×4 is a premium heavy-duty truck model developed based on German MAN's technological platform in collaboration with international partners including BOSCH and AVL, it features Weichai and Cummins engines, paired with FAST transmissions and HANDE MAN-technology drive axles, forming a "Golden Powertrain Combination" covering 270-460 horsepower.

Employing lightweight design, the 6×4 tractor model achieves a weight reduction of 760 kg. It is equipped with ABS+ASR+EBL braking systems and WEVB engine brake technology. The cab meets European ECE-R29 crash standards and incorporates sound insulation technology that reduces noise by 15%. The vehicle integrates air suspension, electric air conditioning, and other advanced facilities .

inquiry now add to cart

Specifications

Cab	F3000 Cab,Double bed,Air conditioner
Dimension(Lx W xH)(mm)	7475×2500×3720mm
GVW (kg)	≤70000kg
Kerb mass(kg)	9500kg
Approach / departure angel	18/66
Front/rear suspension(mm)	1525/800
Max.gradeability(%)	28
Enginebrand	Weichai Engine
Engine model	WP12NG420E50,420hp
Rated output power	309kw
Torque(N.m r. p. m)	1730N.m/1200-1500rpm
Rated speed(rpm)	2100rpm
Emission Standard	E-V
Fuel type	CNG
Displacement(L)	11.596L
Driving type	6×4
Axle number	3
Wheel base(mm)	3775+1400mm
Clutch	φ430diaphragm spring
Gearbox	FAST 12JSD200TA, 12 Forward&2 Reverse, Manual
Front axle	7.5T MAN 7500kg
Rear axle	16TMAN 2×16000kg
Ratio	4.769
Steering	ZFtechnology， left-hand drive(LHD)
Type	12.00R20,10+1pc
Braking system	ABS
Tank capacity(L)	8×140L
Saddle	90#
Max. speed (km/h)	95km/h
Color	Optional

Inquiry Now

Product Name:SHACMAN F3000 6×4 Tractor Truck
