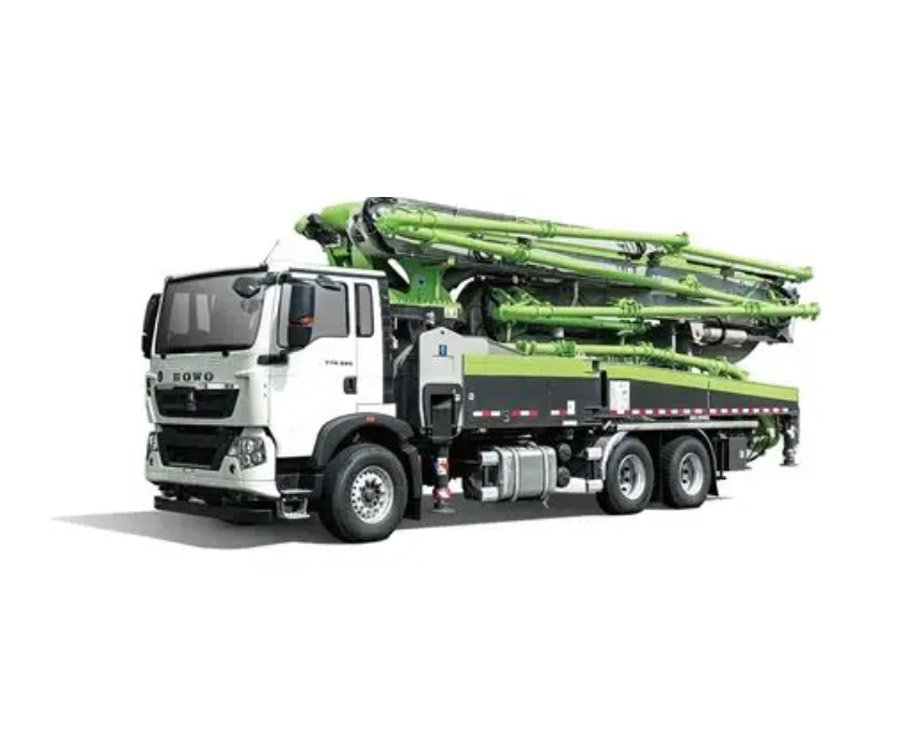

ZOOMLION 43M 6×4 Truck Mounted Concrete Boom Pump

Product Description:

The Zoomlion 43M Concrete Pump Truck is engineered to deliver exceptional concrete placement performance across a wide range of construction applications. Its 43-meter vertical reach, combined with a 5-section RZ-type boom, provides extensive coverage and flexibility, making it suitable for residential, commercial, and infrastructure projects.

inquiry now add to cart

Specifications

Item	Unit	Value	Remarks
Working performance	Max. rated lifting capacity	kg	25000
	Max. load moment of basic boom	kN.m	1029
	Max. load moment of main boom(fully extended)	kN.m	564
	Max. load moment of basic boom	m	10.7
	Max. lifting height of main boom	m	35
	Max. lifting height of jib	m	40.5
Working speeds	Max. hoist rope speed(Main winch)	m/min	120
	Max. hoist rope speed(Auxiliary winch)	m/min	100
	Boom demrricking up time	s	40
	Boom demrricking up time	s	80
	Slewing speed	r/min	0 -2.2
Driving parameters	Max. driving speed	km/h	80
	Max. gradeability	%	40
	Turning diameter	m	≤22
	Min. ground clearance	mm	235
	Oil consumption per hundred kilometers	L	35
Mass	Deadweight in driving condition	kg	29600
	Complete vehicle kerb mass	kg	29600
	Front axle load	kg	6500
	Rear axle load	kg	25900
Dimensions	Overall dimensions(L×W×H)	mm	13000×2550×3500
	Outrigger spread(L)	m	5.36
	Outrigger spread(W)	m	Fully extended:6.1, Intermediately extended:4.2
	Tail slewing radius	mm	3385
	Main boom length	m	10.6 - 40.0
	Boom angle	°	-2 - 80
	jib length	m	8.0
	Offset	°	5,17,30
