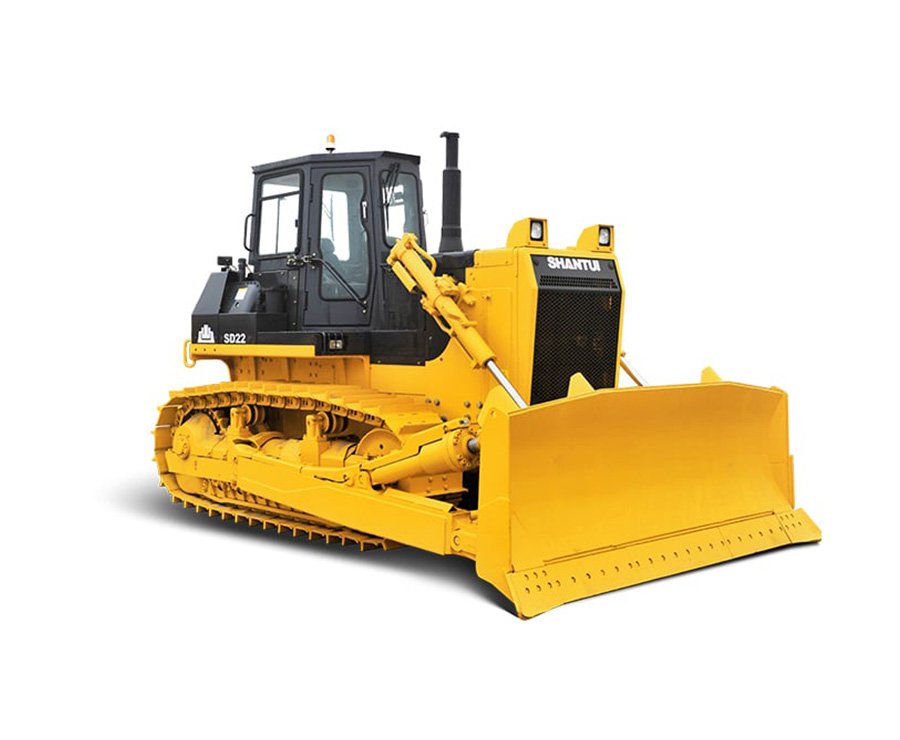

SHANTUI SD22 Bulldozer

Product Description:

Featuring a large chassis ground clearance and an anti-entanglement device, the machine delivers outstandingpassability. lt is equipped with a sanitation blade andprovides the option for a ripper. The cab is well-sealed,ensuring its suitability for sanitation working conditions.

inquiry now add to cart

Specifications

Operating weight (Kg)	23450
Ground pressure (kPa)	66
Engine model	WP12/QSNT-C235
Rated power/rated speed (kW/rpm)	175/1800
Overall dimensions of machine (mm)	549537253402
Forward speed (km/h)	F1：0-3.6 F2:0-6.5 F3:0-11.2
Reversing speed (km/h)	R1:0-4.3 R2:0-7.7 R3:0-13.2
Center distance of track (mm)	2000
Width of track shoes (mm)	560/610/660
Ground length（mm）	2730
Fuel tank (L)	450
Blade type	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade
Digging depth (mm)	540
Ripper type	Single-shank three-shank
Ripping depth (mm)	695 (Single-shank) and 666 (Three-shank)

Inquiry Now

Product Name:SHANTUI SD22 Bulldozer
