JMC All New Carrying Plus T822 2850 WB Double Cabin Dump Truck

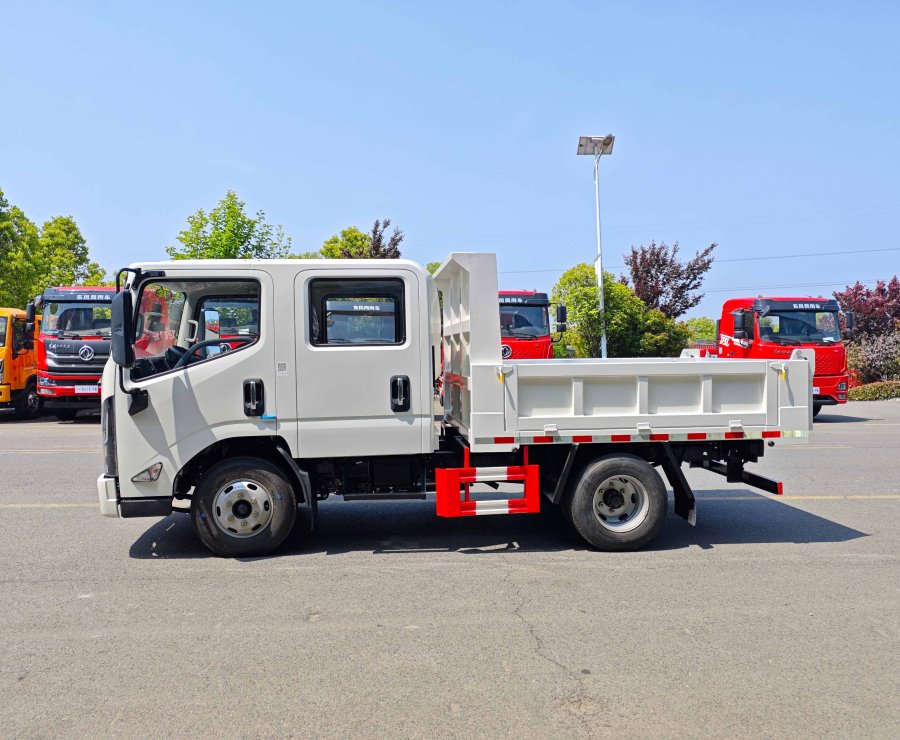

JMC T822 Double Cab Dump Truck

Product Description:

Brand: JMC

Model: Dump Truck

Drive Type: 4×2

Wheelbase: 2850 mm

Emission Standard: Euro II (China National II)

Cabin Type: Double Cab

Application: Infrastructure construction, agricultural transport, municipal maintenance

Customization available – Cab model(Single/Double), Cargo box dimensions, Color, left-hand/right-hand drive, and other modifications can be adapted to your local market requirements. Contact us for a tailored solution!

inquiry now add to cart

Product Details

JMC Double Cab Dump Truck | 2850mm Wheelbase | Euro II Engine

Built for efficiency and reliability in demanding working environments, this JMC double cab dump truck delivers a well-balanced combination of power, maneuverability, and practicality.

Core Advantages:

Euro II Diesel Engine – Proven durability with simple structure, low maintenance cost, and strong adaptability to lower-grade fuel conditions commonly found in overseas markets. Ideal for infrastructure projects.

2850mm Short Wheelbase – Exceptional turning flexibility allows the truck to navigate narrow construction alleys, rural roads, and urban routes with low clearance. Easy to reverse, turn around, and maneuver in tight spaces.

Double Cabin Design – Spacious 2+3 seating capacity allows you to transport both cargo and crew in one trip, greatly improving onsite logistics and personnel allocation efficiency.

Hydraulic Rear Tipper – Fast and easy unloading of sand, gravel, construction waste, and other bulk materials. Reduces turnaround time at dumpsites and increases daily working cycles.

Rugged Chassis & Durable Build – Built on a proven JMC platform with reinforced structure to withstand heavy loads and tough road conditions.

Specifications

Model		All New Carrying Plus
Cabin type		SC/DC
Emissions		E2
Dimension	Wheelbase(mm)	2850
	Cabin width(mm)	1890
	Overall Dimension Cargo body LWH(mm)	SC: 549020802435 DC: 549020802450
	Cargo size L*H(mm)	SC: 37002000440 DC: 27002000440
Powertrain	Engine	JX493
	Displacement(cc)	2771
	Max.Output(kw)/Rpm	68/3600
	Max.Torque(Nm)/Rpm	220/1800-2200
	Gearbox Type	5MT
	Fuel Tank Capacity (L)	66
	Rear axle speed ratio	6.142
Brake&Tire	Brake type	Hydraulic
	Tire type	Single Rear Tire/Dual Rear Tires
	Tire size	Single Rear Tire: 7.0R16 14PR Dual Rear Tires: 7.0R16 10PR
Weight	Kerb weight(kg)	Single Rear Tire: 2265 Dual Rear Tires: 2315
Weight	GVW(kg)	5405
Safety	ABS	●
	Exhaust Brake	○
	Power Steering	●
	Sound alert for handbrake not released	●
	Reminder of unfastened seat belt for driver	●
	LED daytime running light	/
Comfort	Infotainment System(Bluetooth music / Bluetooth phone / USB music)	●
	Multifunction steering wheel	●
	Air conditioner	●
	Central locking(manual)	●
	Remote key	●
	Power windows	●
	One-touch window lift--driver	●
	Remote key control glass one-touch lift	●
	Driver armrest	●
	Headlight delay off	●
	Driver overhead storage box	●
	USB charging port	●
	Overhead storage box mounted USB port	●
	12V Socket/ Power Port DC 12V Outlet	●
	Speed-sensitive automatic door locking	/

Inquiry Now

Product Name:JMC T822 Double Cab Dump Truck
