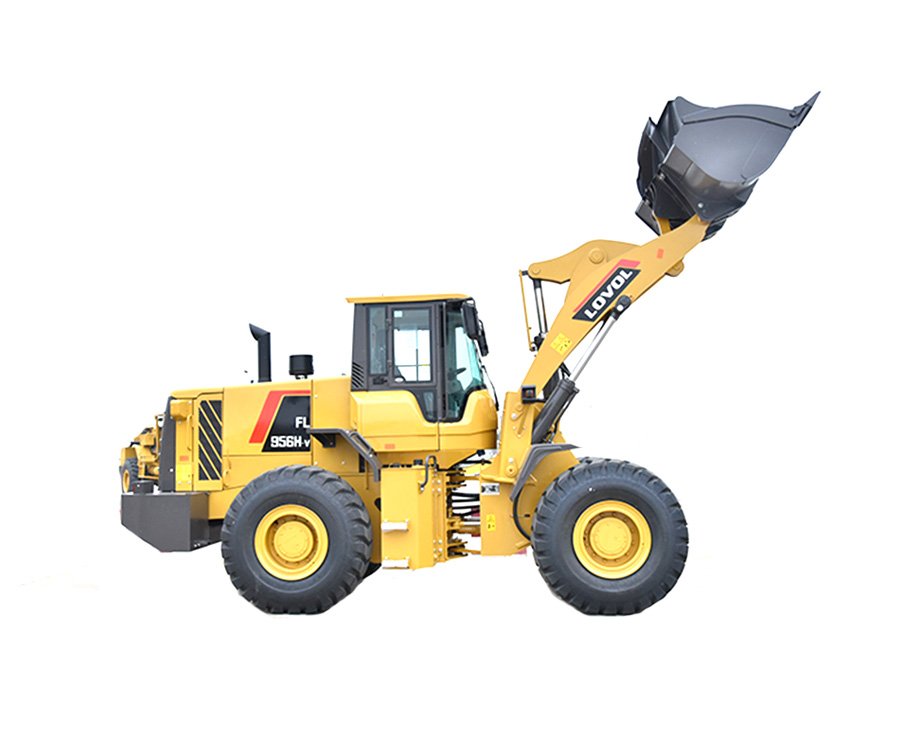

LOVOL FL956HV Wheel Loader

Product Description:

The bearings and oil seals adopt imported components.

The hydraulic system filter element has a filtration ratio of 200,thus the system is cleaner and more reliable.

The multi-stage hydraulic power steering is light and the three-pump confluence operation is more efficient.

With comfortable operation, spacious and ergonomic design, and excellent, driving and riding are more comfortable.

Specifications

Rated Power:	162KW
Operating Weight:	16950KG
Bucket Capacity:	3m³
Engine Model:	WEICHAI WD10G220E23
Max. Breakout Force:	160kN
Rated Load:	5000kd
Max. Traction Force:	160kN
Max. Gradeability:	30°
Max. Dump Clearance:	3140mm
Dump Reach:	1090mm
Wheel Tread:	2150mm
Wheelbase:	3200mm
L×W×H:	8060×2980×3380mm
Type:	Double pump flow confluence, flow amplifying hydraulic system
Steering Angle Each Direction:	37º
Min. Turning Radius:	6930mm
Working Pressure:	18Mpa
Boom Lifting Time:	5.7S
Total Cycle Time:	10.6S
Fuel Tank:	280L
Hydraulic Tank:	140L
Engine Oil:	20L

Inquiry Now

Product Name:LOVOL FL956HV Wheel Loader
