Self Propelled Modular Transporter

Product Description:

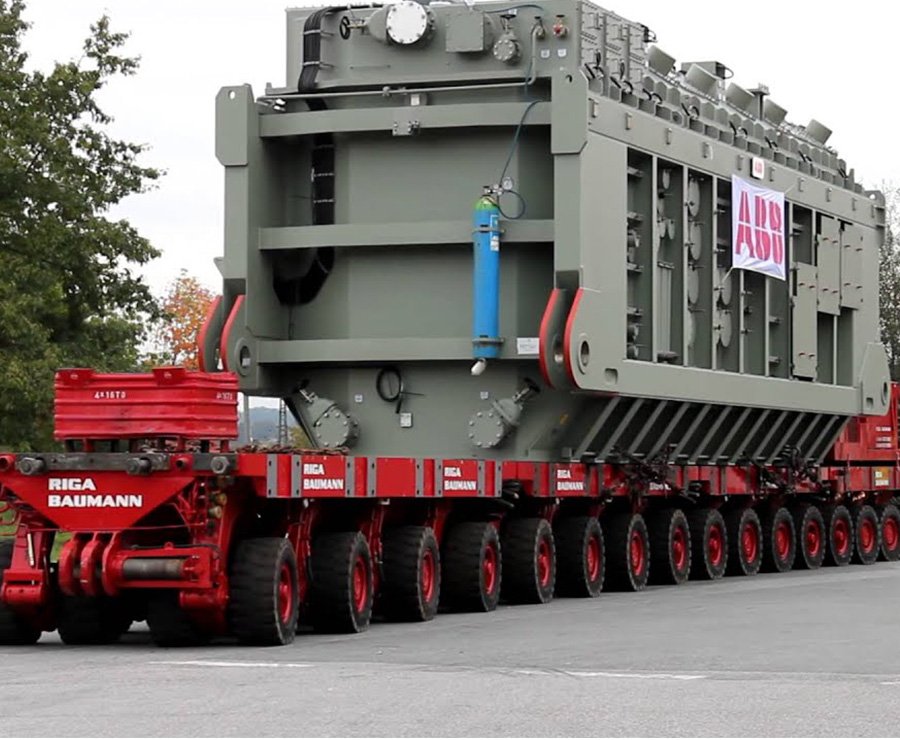

The sophisticated steering technology of the SPMT (self propelled modular transporter) enables precise maneuvering and positioning of the heaviest loads. TITAN spmt for sale equipped with a wireless remote control for easy and user-friendly operation.

inquiry now add to cart

Specifications

Capacity	48 Tons / axle line
Dead weight	4 Tons / axle line
Material	S690 high tensile steel
Platform width (mm)	2,430
Platform height (mm)	1,500 ± 350 (700 mm stroke)
Wheelbase (mm)	1,400
Tire	355/65 R15 4 tire / axle line
Tractive force	160 KN per driving axle line (80 x 2)
Steering angle	+130° / -110° Rack and Pinion
Working temperature	-40°C to +50°C
Permitted bending moment	-6,262 kNm / +7,785 kNm

Inquiry Now

Product Name:Self Propelled Modular Transporter
