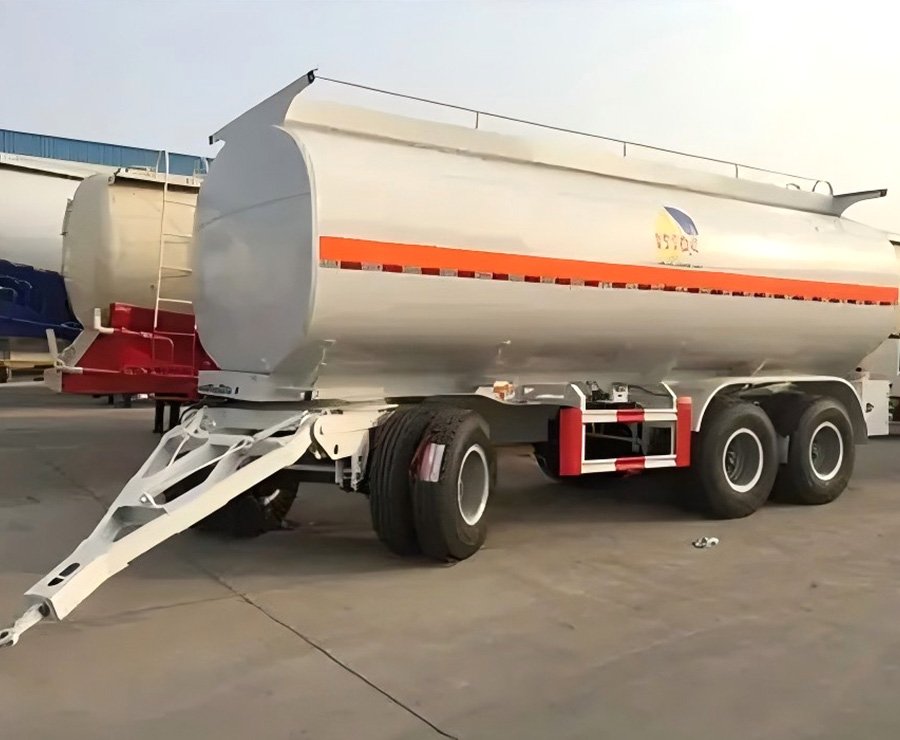

1000L Fuel Tank Full Trailer

Product Description:

Fuel tank trailer with pump consist of a primary steel tank tightly wrapped by a secondary exterior steel wall that may be in direct contact with the primary tank. The tank trailer employs the same construction methods as the single wall tanks. The space between the tanks, known as the interstice, can be monitored. In addition to the inner tank's emergency vent fitting, double wall tanks are supplied with a secondary emergency vent box with fitting.

inquiry now add to cart

Specifications

Overall dimension	5,000×2,500×2,000mm (Customization supported)
Volume	10m³ (Customization supported)
Axle	BPW/FUWA/Factory brand, 13T/16T * 2
Suspension system	Mechanical Suspension
Main beam	Beam height 500mm, Top plate 14mm, Bottom plate 16mm, Middle plate 8mm. (Customization supported)
Tire	Triangle/ Linglong/ Longmarch brand, 11.00R20/ 12.00R22.5/ 12.00R20/ 315/80R22.5 8 pcs (include one spare tire)
King Pin	3”(90mm) / 2.5” (50mm)
Spare wheel holder	1 (Customization supported)
Toolbox	1 (Customization supported)
Landing gear	JOST/ FUWA/ Factory brand Standard 28 tons
Braking system	Dual line pneumatic brake system
ABS	WABCO brand, 4S/2M
Electrical system	Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light
Side guard	Standard
Paint color	Customization supported
Packaging	Waxing before departure

Inquiry Now

Product Name:1000L Fuel Tank Full Trailer
