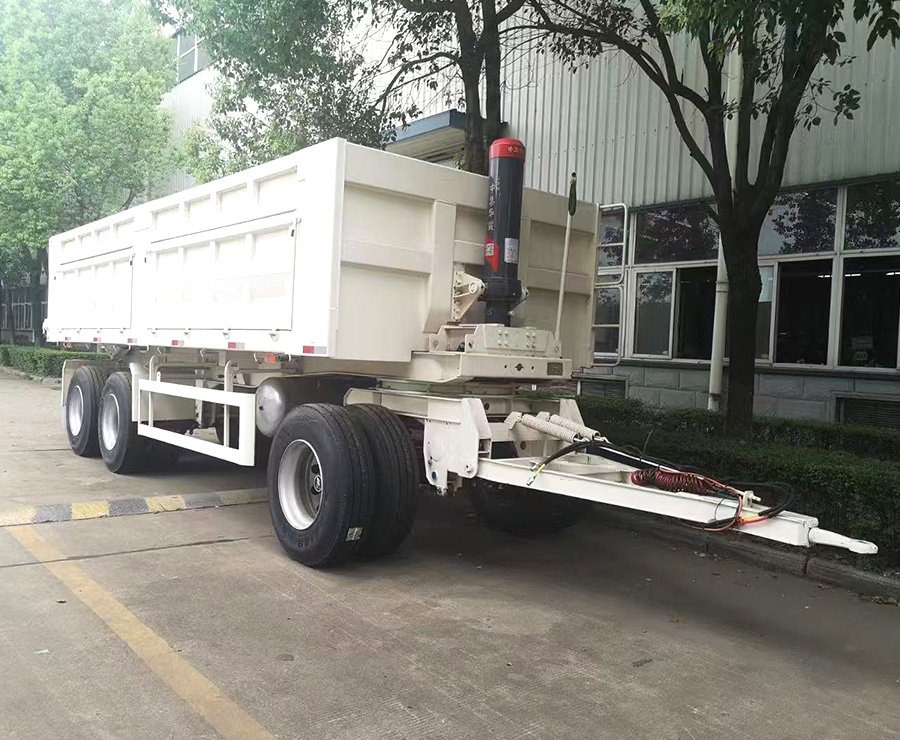

3 Axle Dump Drawbar Trailer

Product Description:

Tri axle dump drawbar trailer is much flexible when running on the road and easy to turn the direction.

Full trailer can increase the loading capacity of lorry and reduce fuel consumption, thereby reducing transportation costs.

Specifications

Overall dimension	10,700×2,550×3,500mm (Customization supported)
Cargo size	9,000×2,300×1,800mm (Customization supported)
Lifting system	Rear lifting/ side lift
Loading weight	20T/30T/40T
Axle	BPW/FUWA/Factory brand, 13T/16T * 3
Suspension system	Mechanical Suspension
Main beam	Beam height 500mm, Top plate 14mm, Bottom plate 16mm, Middle plate 10mm. (Customization supported)
Tire	Triangle/ Linglong/ Longmarch brand, 11.00R20/ 12.00R22.5/ 12.00R20/ 315/80R22.5 12 pcs (include one spare tire)
King Pin	3”(90mm) / 2.5” (50mm)
Spare wheel holder	1 (Customization supported)
Toolbox	1 (Customization supported)
Landing gear	JOST/ FUWA/ Factory brand Standard 28 tons
Braking system	Dual line pneumatic brake system
ABS	WABCO brand, 4S/2M
Electrical system	Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light
Side guard	Standard
Paint color	Customization supported
Packaging	Waxing before departure

Inquiry Now

Product Name:3 Axle Dump Drawbar Trailer
