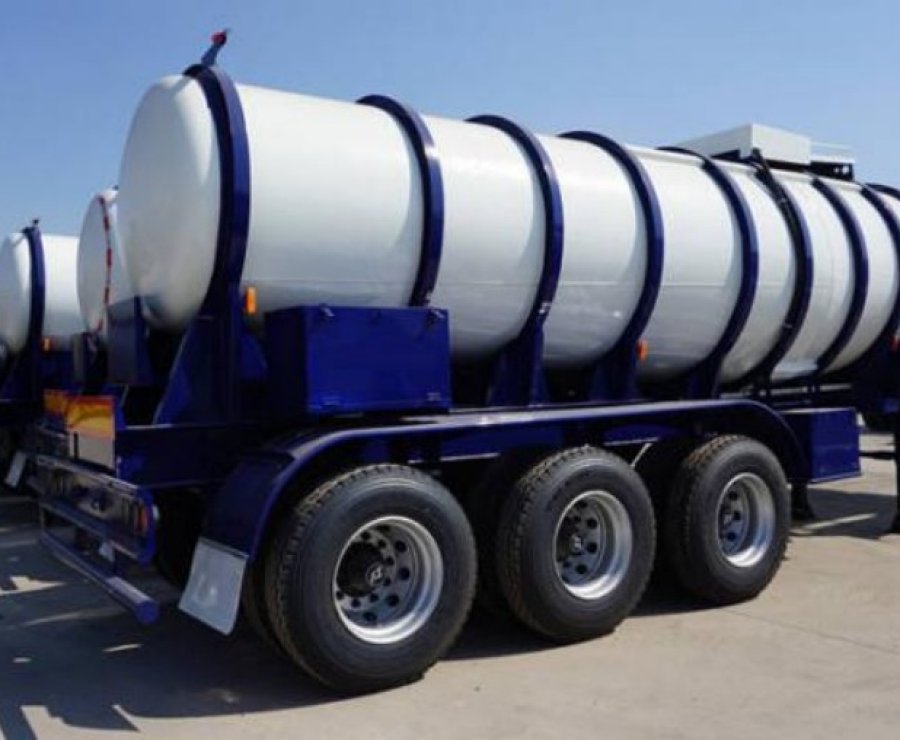

Sulfuric Acid Tanker Semi Trailer

Product Description:

Hydrochloric Acid Tanker, we produce the most strong acid tank body to make sure the safety. We adopt 5mm thick steel to weld the tankers, also use special design, like the 12 pcs strengthened steel ring to reinforce the Dilute Sulfuric Acid tanker trailer.

inquiry now add to cart

Specifications

Overall dimension	11,500×2,500×3,700mm (Customization supported)
Volume	20-25 m³ (Customization supported)
Transport	Sulfuric acid
Manhole cover	Stainless steel manhole cover
Bottom valve	Aluminum API pneumatic bottom valve
Axle	BPW/FUWA/Factory brand, 13T/16T * 3
Suspension system	Mechanical Suspension
Main beam	Beam height 500mm, Top plate 14mm, Bottom plate 16mm, Middle plate 10mm. (Customization supported)
Tire	Triangle/ Linglong/ Longmarch brand, 11.00R20/ 12.00R22.5/ 12.00R20/ 315/80R22.5 12 pcs (include one spare tire)
King Pin	3”(90mm) / 2.5” (50mm)
Spare wheel holder	1 (Customization supported)
Toolbox	1 (Customization supported)
Landing gear	JOST/ FUWA/ Factory brand Standard 28 tons
Braking system	Dual line pneumatic brake system
ABS	WABCO brand, 4S/2M
Electrical system	Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light
Side guard	Standard
Paint color	Customization supported
Packaging	Waxing before departure
