LPG Semi Trailer

LPG Semi Trailer

Product Description:

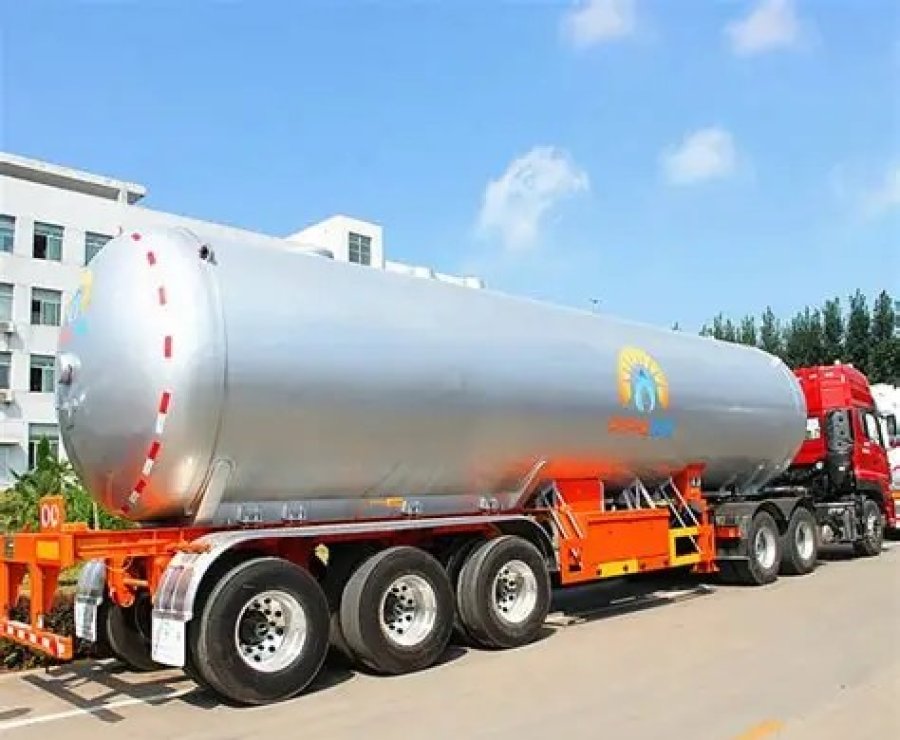

LPG semi trailer is a normal temperature fixed pressure vessel, a single-layer tank structure, dedicated to storing liquefied petroleum gas, using low-alloy steel plates for the vessel, with excellent performance, safety and reliability.

inquiry now add to cart

Specifications

Overall dimension	12,000×2,500×3,800mm (Customization supported)
Volume	45m³
Manhole cover	2 sets (Customization supported)
Relief valve	1 set (Customization supported)
Axle	BPW/FUWA/Factory brand, 13T/16T * 3
Suspension system	Mechanical Suspension
Main beam	Beam height 500mm, Top plate 14mm, Bottom plate 16mm, Middle plate 10mm. (Customization supported)
Tire	Triangle/ Linglong/ Longmarch brand, 11.00R20/ 12.00R22.5/ 12.00R20/ 315/80R22.5 12 pcs (include one spare tire)
King Pin	3”(90mm) / 2.5” (50mm)
Spare wheel holder	1 (Customization supported)
Toolbox	1 (Customization supported)
Landing gear	JOST/ FUWA/ Factory brand Standard 28 tons
Braking system	Dual line pneumatic brake system
ABS	WABCO brand, 4S/2M
Electrical system	Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light
Side guard	Standard
Paint color	Customization supported
Packaging	Waxing before departure
