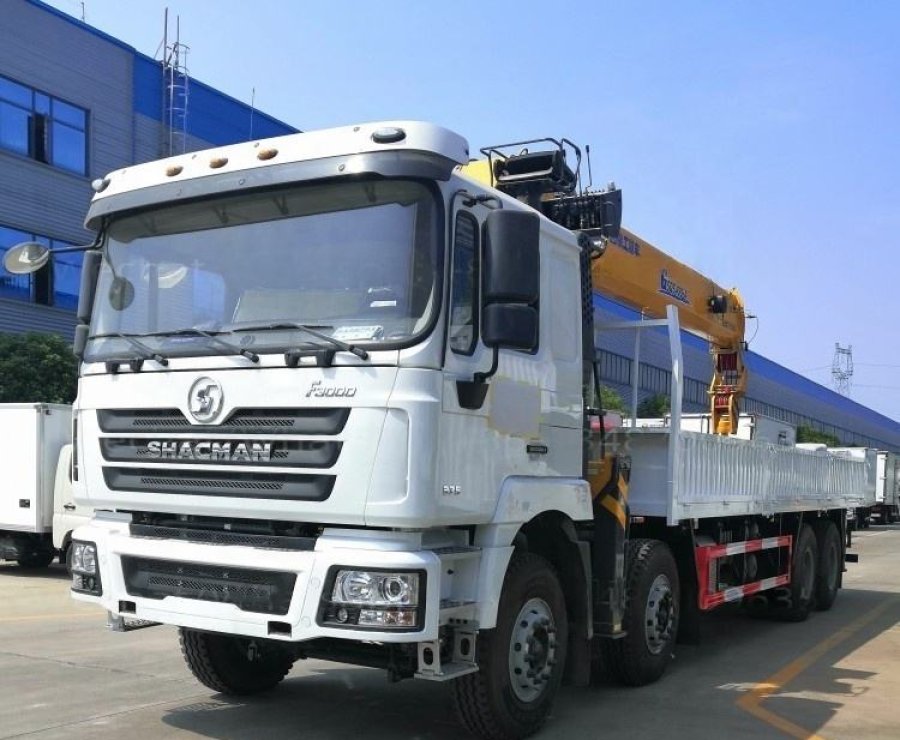

SHACMAN F3000 8×4 Mounted Crane Truck

Product Description:

The Shacman F3000 8×4 Truck Mounted Crane combines a robust 380HP Weichai engine and a durable 25-ton GVW chassis with a high-performance XCMG crane featuring a 5-section U-shaped boom and 360° full rotation, delivering reliable heavy lifting and transport.

inquiry now add to cart

Specifications

Specification	Details
Platform	F3000
Drive Type	8×4
Gross Vehicle Weight (GVW)	25,000 kg
Engine Model	Weichai
Engine Power	225 kW (380 HP)
Wheelbase	5900 + 1350 mm
Tire Model	11.00R20 – 18PR
Axle Load	Front: 7000 kg / Rear: 18000 kg
Overall Dimensions (L×W×H)	12,000 × 2550 × 3950 mm
Cargo Compartment Size	8500 × 2450 × 550 mm
Maximum Speed	90 km/h
Cooling System	Air conditioner
Crane Boom	5-section U-shaped boom
Basic Arm Length	5.6 – 18.8 m
Maximum Lifting Height	21.8 m
Maximum Lifting Torque	30 T·m
Maximum Elevation Angle	0° – 75°
Rotation Angle	360° full rotation
Hydraulic Legs	Automatic two-cavity rear outriggers
Swing Speed	2.5 rpm
Crane Weight	16,230 kg
Rated Load Capacity	8575 kg
Boom Extension Type	Rod rope
Control System	Double pump combined flow, one-click start-stop control
Hydraulic Oil Tank	Aluminum alloy
Car Rack	300 three-layer
