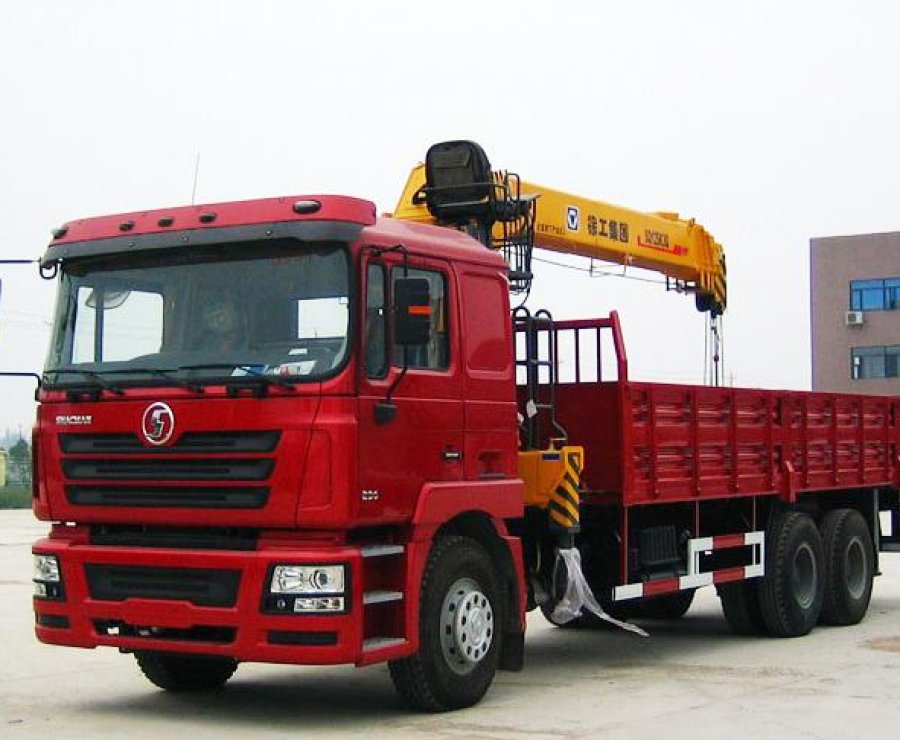

SHACMAN F3000 6×4 Mounted Crane Truck

Weight

Gross Vehicle Weight

≤35

Dimensions

Wheelbase/(mm)

5775+1400

Performance

Maximum speed/(km/h)

50～70/90

Ground clearance

>314

Engine

Brand

WEICHAI

Model

WP10.340E22

Power/(kw/HP)

250kw / 300Hp

Maximum torque / (N.M)/rpm

1400 N·M

Displacement/(L)

9.726 L

Emission standard

Euro/ II

Gear box

Brand

FAST

Model

RTD-11509C+QH50

Clutch

Type

φ430 Diaphragm spring clutch

Cooling

Type

Domestic heat sink

Air inlet

Type

Ordinary air filter

Brakes

Type

Drum brake

Service brake

Double circuit air brake

Park brake

Rear wheel spring brake

Auxiliary brake

WEVB engine exhaust brake

Steering

Type

ZF8098 technology, circulating ball steering machine

Chassis

Type

Parallel trapezoidal frame with variable section

Dimensions/(mm)

850×300(8+5+8)

Suspension

Front

Multi-layer plate spring 4 main plates + 4 U-shaped bolts

Rear

Multi-layer plate spring 4 main plates + 4 U-shaped bolts

Axles

Brand

HANDE

Front axle

7.5T front axle MAN technology

Rear axle

16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769

Tires

Type

12.00R20

Fuel tank

Tank capacity/(L)

300L Aluminum tank

Electrics

Type

24V

Battery

165Ah Maintenance-free battery

Cab

Type

SHACMAN F3000 Medium-length flat cab

Equipment

Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror,square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo.

Super structure parameters

Crane lifting type

Hydraulic

Crane capacity

5-12ton

container size

6800*2350*600mm(customized )

container material

High strength carbon steel

Container thickness

3mm Side,4mm bottom
