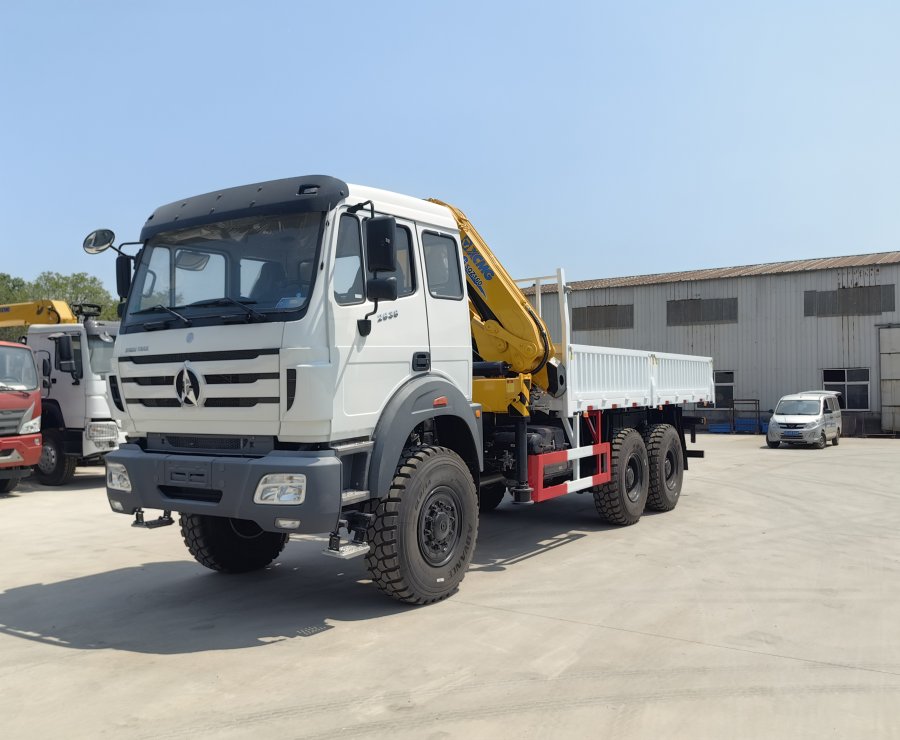

BEIBEN 6×6 Mounted Crane Truck

 Chassis model

 ND5250GGSA

 Driving Type

 6×6

 Dimensions

 Wheelbase(mm)

 5050+1450

 Overall Dimension(mm)

 8960×2500×3328

 Cargo box dimension(mm)

 6000x2300x800

 Weight parameters

 GVW(kg)

 25,000kgs

 Curb weight(kg)

 13,250kgs

 Real load weight(kg)

 11,010kgs

 Chassis parameter

 Front axle

 7 Ton front axle load capacity, Double shoe disc air break

 Rear/middle axle

18Ton/axle (2 axle combined)
 Dual-circuit air braking system,driving axle,ductalloy axle cover
 with wheel side reducer

 Front axle span(mm)

 1940

 Rear axle span(mm)

 1847/1847

Front/rear overhang(mm)

 1410/2530

 Approach angle(°)

 34

 Departure angle(°)

 24

 Max speed(km/h)

 80

 Suspension

 Leaf spring suspension

 Engine performance

 Engine model

WP10.320(From WEICHAI engine)

 Engine type

Straight in-line,6 cylinders,4 strokes,water-cooling
Turbo charge with inter-cooling,diesel engine

 No. of cylinders

 Straight-6 cylinders

 Displacement(L)

 9.726L

 Max. Output (KW)

 235kw (320hp)

 Fuel type

 Diesel

 Max. output (kw/Ps/rpm)

 235kw(320ps)/2200 rpm

 Max torque/Speed(N.m/rpm)

 1250 N.m/1400-1600rpm

 Tire specification

 14.00R20,total 6 units off-road tire+1 spare tire

 Drive Line

 Clutch description

 ¢420,dry single plate, hydraulic control booster,mechanical
 operation with hydraulic assistance

 Transmission

 8 forwarder,1 reverse gear, synchronous meshing,manual

 Braking system

 Service brake:Brake gap can be adjusted automatically
 double circulation air brake system
 Assistant brake:WEVB(Engine exhaust brake)
 Park brake:Spring brake effect to middle and rear tires

 Suspension system

 Front axle

Semi-elliptic leaf springs shock absorbers

 Rear axle

Torsion bar semi-elliptic leaf springs

Electrical Equipment

 Voltage

24V

 Batteries

2X12V/135Ah

 Starter

6.2Kw/24V

 Cab description

 NG80 short cab,cooling and heating air-conditioner,all steel bumper
 With FM,AM radio player,with manual windows
