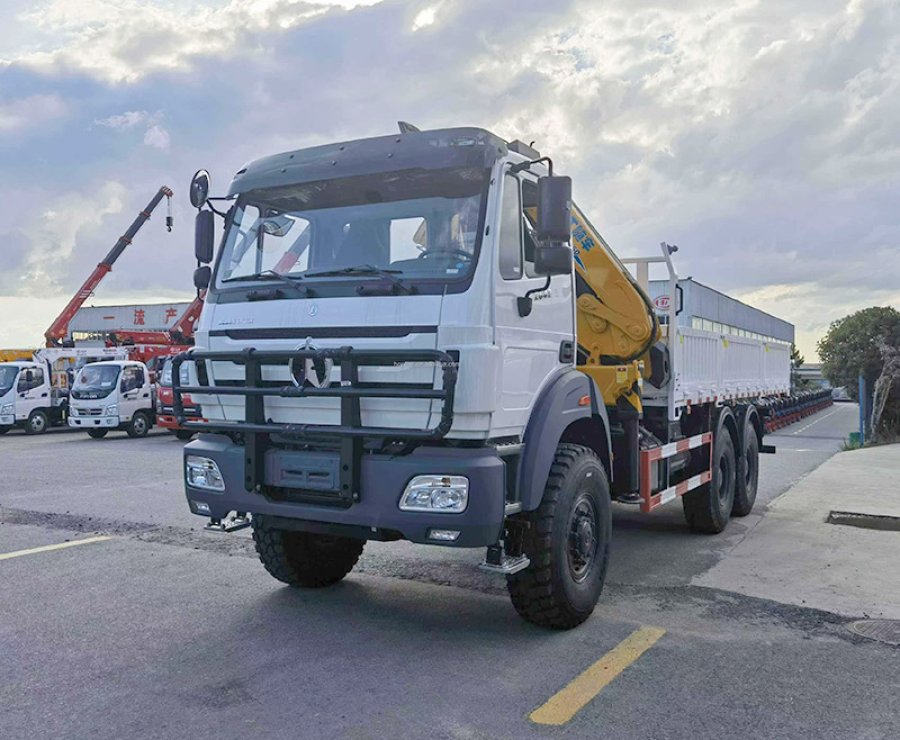

BEIBEN 6×4 Mounted Crane Truck

Product Description:

The truck mounted crane features a brand-new cab, designed by BEIBEN in collaboration with a renowned European design firm. The vehicle boasts a stylish and elegant design, with the brand’s signature V-shaped front styling creating a dignified and imposing presence. The interior instrument panel adopts the popular European roundabout style, creating a sleek and stylish look. The cab is equipped with a front bumper to reduce collisions and extend its service life. The cargo box features three side panels with straight-grained panels. The columns between the panels are removable at any time. The longitudinal beams at the bottom of the cargo box are constructed from square tubular sheet metal, while the cross beams can be made from channel steel or square tubular steel.

inquiry now add to cart

Specifications

Engine
Model	WP10.340E32
Horsepower	340HP
Emission	Euro 2
Other	4-stroke direct injection diesel engine
Cabin
Model	NG80B,with one bed, A/C
Other	Four full floating suspension + suspension device
Gearbox
Model	10JSD180, 10 forward and 2 reverse gear
Max.Input Torque	1800NM
Tire
Model	12.00R20,10+1 pcs
Brand	TRIANGLE
Fuel Tank
Model	400L
Material	Aluminum alloy
Drive Axle
Model	13 T
Load Capacity	Per axle loading capacity is 13,000kg, total 2x13,000kg
Brake Type	Drum brake
Front Axle
Model	7 T
Load Capacity	Per axle loading capacity is 7,000kg, total 1x7,000kg
Brake Type	Drum brake

Inquiry Now

Product Name:BEIBEN 6×4 Mounted Crane Truck
