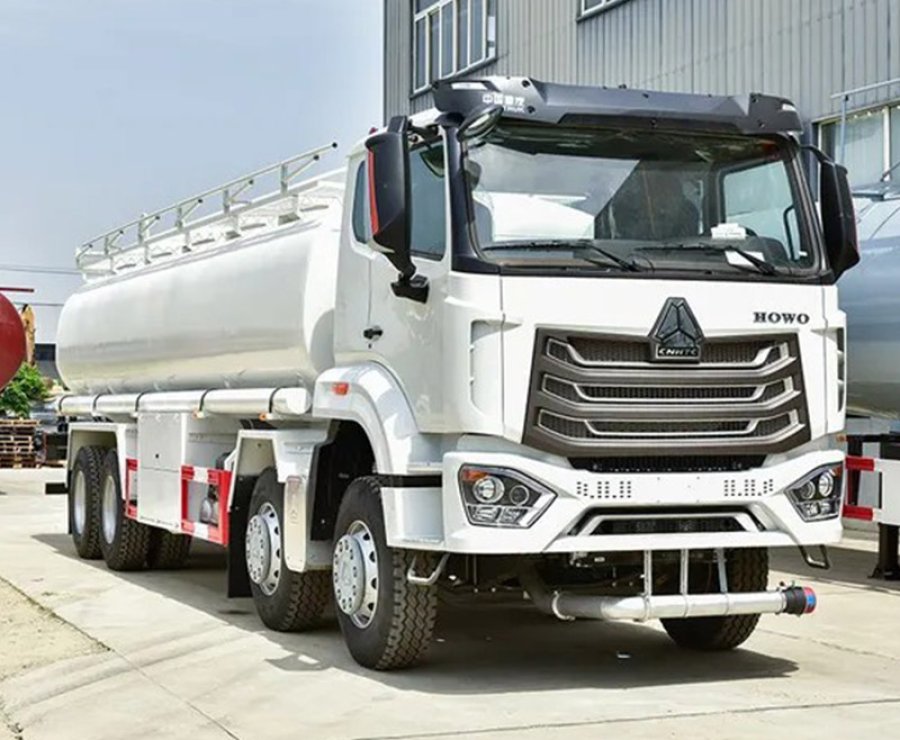

SINOTRUK HOWO NX (HAOHAN) 8×4 Fuel Tank Truck

Product Description:

This product is the proven product, which features reliable structure, great loading capacity, it's suitable for towing all kinds semi trailer which is used in Logistics business,construction site and Mining area, excellent power from 340-350HP, reliable performance. This product can meet the requirements of different road conditions. This product can satisfy your need of long distance highway transportation.

inquiry now add to cart

Specifications

Engine	Modal	WD615.47
	Emission	Euro 5
	Displacement	9.726L
	Max Torque ( Nm/rpm)	1350/1100-1600
	Type	water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
Clutch		Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance.
Chassis		Three layers frame 8+8+8mm,U-profile parallel ladder frame and reinforced subframe, all cold riveted cross members
Front Axle		HF9 for heavy truck, rated load of 9t. drum-type
Rear Axles		HC16 with double reduction, central single reduction plus planetary wheel reduction and with differential lock
Drive Shaft		Double universal joint propeller shaft with gear-shaped coupling flange
Fuel Tank		400 L Aluminum fuel tank with locking fuel cap, fitted to the off side of the chassis
Steering		ZF power steering, model ZF8118,hydraulic steering with power assistance.
Tyres		Standard is 12.00R20, with spare parts radial tyres 315/80R22.5, 295/80R22.5, 12R22.5 tubeless tire is optional

Inquiry Now

Product Name:SINOTRUK HOWO NX (HAOHAN) 8×4 Fuel Tank Truck
