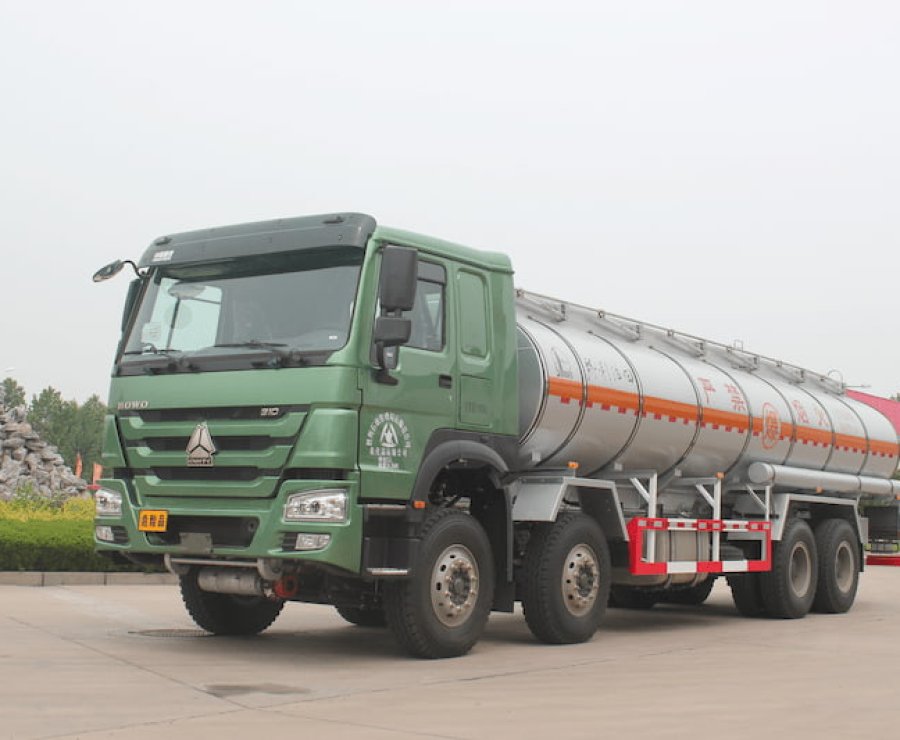

SINOTRUK HOWO 8×4 Fuel Tank Truck

Product Description:

The robust 8×4 drive configuration offers excellent stability. Allows for substantial fuel carrying capacity. Typically ranging from 30,000L to 45,000L or customized to your needs. Optimizing delivery volumes and reducing trips. Perfect for bulk fuel transport.

inquiry now add to cart

Specifications

Overall Dimension(L x W x H)		11900×2500×3450(mm)
Wheelbase:		1800+4600+1400mm
Curb weight:		11250kg
Drive Type:		8x4
Engine	Model	D12.42 ,420HP, Euro 2
	Type	6-cylinder in line, water-cooled,4-stroke,turbocharged & inter-cooled, high pressure common rail
	Displacement(ml)	11596
	Number of cylinder	6
	Max.power(HP/rpm)	420HP(309kw)
	Max.torque(N.m/rpm)	1820N.m/1100-1400 rpm
Transmission	HW19712 transmisson, 12 forward and 2 reverse
Front axle	HF9
Driving axle	HC16
Cabin	T7H front face, with A/C, with double sleeper
Front Wheel Tread:		2022/2022, 2041/2041mm
Rear Wheel Tread:		1830/1830mm
Tire Model:		295/80R22.5 with one spare tire
ABS		No
Fuel Tank		400L
Tank body specs	Tank volume	30,000L
	Tank material	Aluminum alloy
	Compartments	8 Units: 2000L/2000L/2000L/4000L /4000L/4000L/6000L/6000L(can be customized)
	Manhole	8 Units, 3 units 16"Aluminum alloy 5 units 20" Aluminum alloy
	Foot Valves	8 Units, 4"Aluminum alloy, pneumatic operate
	Discharge ball valves	8 Units, 2.5"Aluminum alloy
	Pump in and Pump Out	Equipped
	Ladder:	A detachable carbon steel ladder is equipped at the front of the tank
	Handrail	Stainless steel pneumatic handrail at both sides on the top of tank
	Gauge	Equipped, 1pcs each compartment
	Calibration	Without
	Tool box	1pcs

Inquiry Now

Product Name:SINOTRUK HOWO 8×4 Fuel Tank Truck
