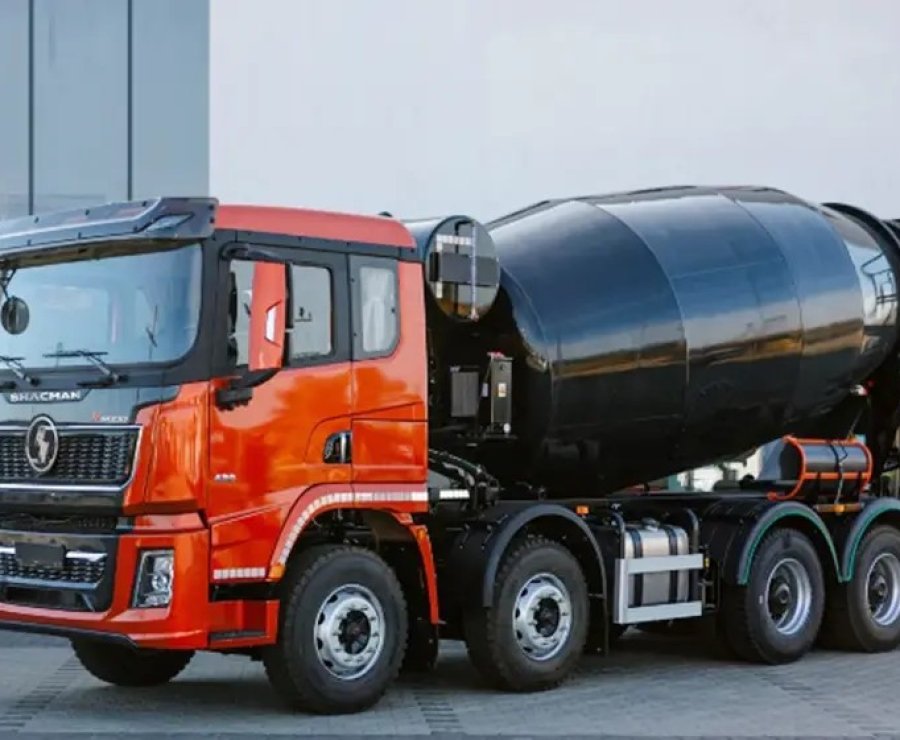

SHACMAN X3000 8×4 Mixer Truck

Product Description:

The x3000 shacman 8x4 concrete cement mixer truck's tank body of the x3000 shacman cement mixer truck adopts a pear-shaped structure, with a small inclination angle, a low center of gravity, and safe and stable driving. This truck's feeding space is large and the design angle is reasonable, so that the feeding speed of the Shaanxi Automobile Concrete Mixer is accelerated, and the phenomenon of material blocking and blocking is not easy to occur.

inquiry now add to cart

Specifications

Driver position		Left Hand/Right Hand
Driving type		8*4
Wheelbase(mm)		1800+2975+1400
Max. Speed(km/h)		75km/h
Engine	Brand	WEICHAI
	Model	WP10.380E22+PTO
	Emission Standard	EURO II
	Rated output power（PS）	279KW/380HP
	Displacement(L)	9.726L
Transmission	Brand	FAST
	Model	10JSD180
Front axle	Brand	HANDE
	Model	MAN 9.5T
Rear axle	Brand	HANDE
	Model	16T MAdouble speed reduction bridgeSpeed ratio：5.262
Clutch		￠430 diaphragm clutch￠430
Steering		ZF technology/ ZF
Frame		850x300(8+7)
Suspension		Front and rear multi-leaf spring four main flims+four horse riding
Fuel tank		300LAluminum alloy fuel tank
Wheels and tires		12.00R20 12+1
Brakes		Running brake:Dual circuit compressed air brake
		Parking brake:Air discharging with spring control
		Auxiliary brake:Engine exhaust brake
Cabin		Hydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioning, electric window shaker, manual flip, telescopic shaft operation, ordinary air filter, metal bumper, daytime running lights, hinged access pedal , 180Ah maintenance-free battery, spare tire rack, SHACMAN logo, full English logo, remote throttle controller shipped with the vehicle (only electronically controlled engine)

Upbody		16cube

Inquiry Now

Product Name:SHACMAN X3000 8×4 Mixer Truck
