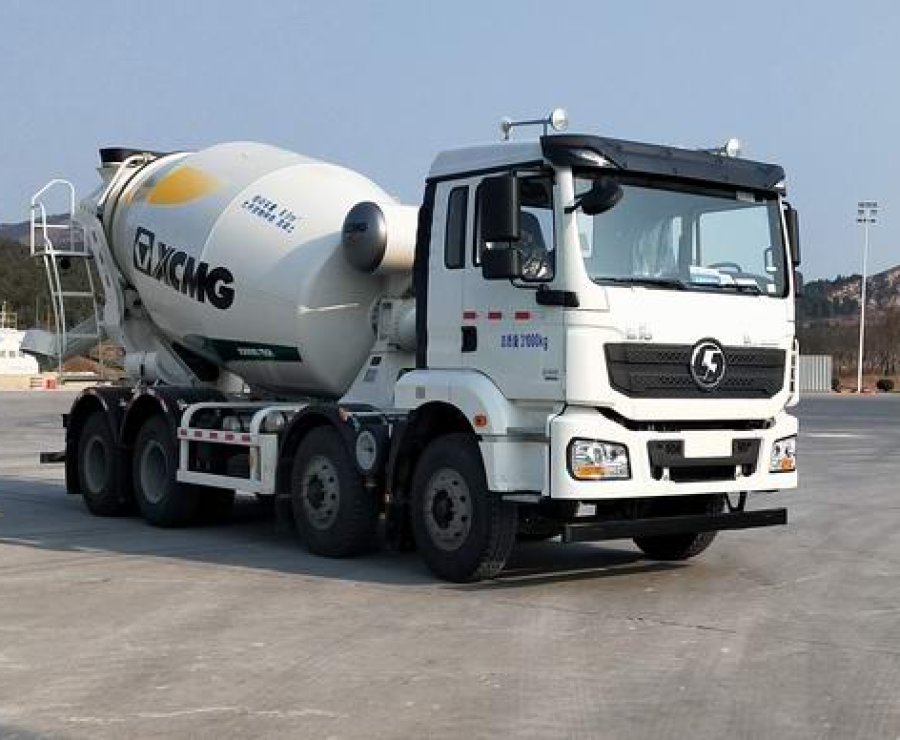

SHACMAN H3000 8×4 Mixer Truck

Product Description:

Shacman Cement Mixer Truck has a lower body, which makes the whole vehicle have higher stability when driving. The compact open hydraulic circuit system improves the working efficiency. The temperature control switch can ensure that the temperature of the hydraulic system is not higher than 65 ℃. Wear resistant lining plates are added to the feed hopper and swing discharge chute to improve the service life. The mixing drum shell and blade made of special materials have higher wear resistance.

inquiry now add to cart

Specifications

Drive		8X4
Max weight(t)		≤50
Volume(m³)		12
Max speed(km/h)		85
Loaded speed(km/h)		45~60
Vehicle model		SX5315GIBHU306
Engine		WP12.400E201+PTO
Emission standard		Euro II
Displacement		11.2596L
Rated Output		280kw
Max. torque		1500N.m
Transmission		10JSD180
Clutch		430
Frame		850X300(8+7)
Front axle		MAN 9.5T
Rear axle		16T MAN double reduction5.262
Tire		12.00R20
Front Suspension		Multi leaf springs
Rear Suspension		Multi leaf springs
Fuel		Diesel
Capacity of the fuel tank		400L
Dimensions(LxWxH)		10725X2495X3774
Approach/Departure angle( °)		20/18
Max.grade ability(%)		34
Cab	Type	♦ Rear window♦ Manual sunroof♦ Hydraulic driver seat with seatbelts♦ Hydraulic suspension of cab♦ Automated air conditioning♦ Electric window♦ Radio with MP3 player
	Equipment
	Optional	♦ Air cushioned drivers seal♦ Full vehicle WABCO valve♦ Central locking

Inquiry Now

Product Name:SHACMAN H3000 8×4 Mixer Truck
