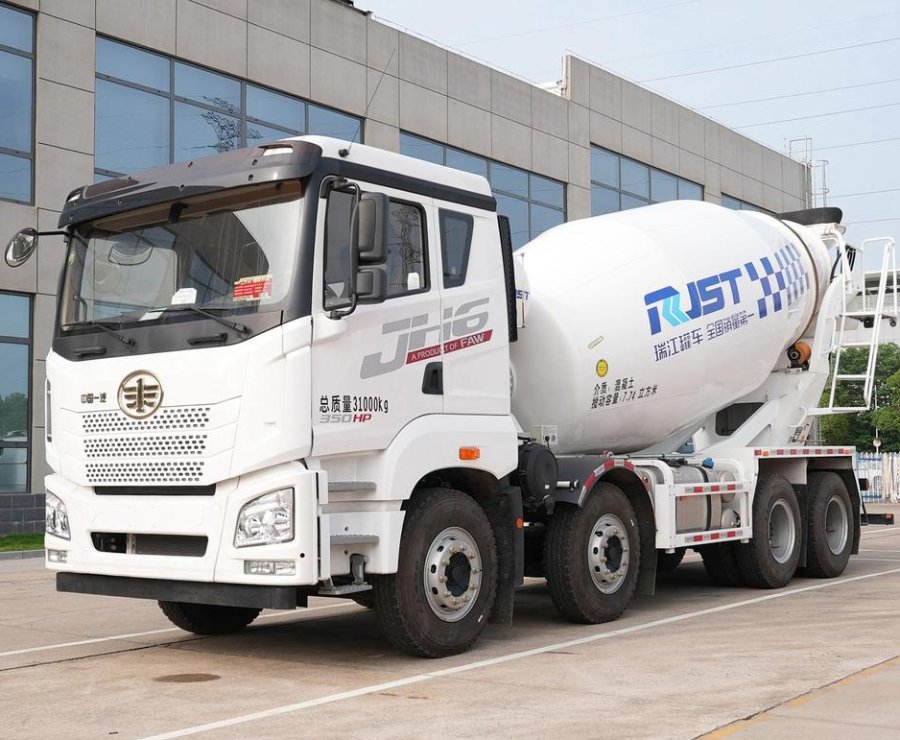

FAW JH6 8×4 Mixer Truck

Product Description:

The tractor head adopts advanced roller pressing technology during the manufacturing process, which makes the frame strong, the aperture precision good, and the assembly quality better. The chassis secondary painting process effectively improves corrosion resistance.

The vehicle is equipped with an advanced concrete mixing device, which can complete the mixing of a large amount of concrete in a short time, greatly improving work efficiency. At the same time, the tank body is made of high-strength raw materials, and the durability is increased by 20%.

inquiry now add to cart

Specifications

Product Name:	FAW JH6 8×4 Mixer Truck
Color	Multiple Options Available
Drive Type	8×4
Driving Position	Left-Hand, Right-Hand
Emission Standard	Euro 2 (E2), Euro 3 (E3), Euro 5 (E5)
Engine	Xichai CA6DM2-42, Xichai CA6DM2-42E52,Weichai
Engine Horsepower	420PS
Clutch Model	Ø430
Transmission	FAW CA10TA190F, Shaanxi Gear 12JSD200T-B
Front Axle	2020 Front Axle – Main Unit
Rear Axle	300 Reducer Axle (5.263 Speed Ratio) – Main Unit
Rear Axle Ratio	5.263 Speed Ratio
Frame	30080(8+8)
Cab Configuration	JH6 Right-Hand, Raised Floor, Flat-Top, Fully Floating Cab
Tires	13R22.5-18 Levels
Wheelbase	1900+3600+1350
Cranking Volume	12m³
Load	18 Tons
Other Features	Concrete mixer truck chassis, 180AH battery, imported clutch, 600L aluminum fuel tank, WABCO clutch booster with full-power power take-off, WABCO valves throughout, electric lift, power mirrors, power windows, automatic air conditioning, front underbody guard, 10/10/12 leaf springs, Camel battery, oil filter, long-service coarse filter, dual I-bar rear balancing suspension, 4U bolts, small bumper, front and rear headlight guards, imported ABS, 8.8mm steel rims, mixed-tread tires, multi-function steering wheel, 10-inch basic screen, warning light bracket, front axle stabilizer bar, radiator guard, exhaust pipe facing upwards, vehicle for export

Inquiry Now

Product Name:FAW JH6 8×4 Mixer Truck
