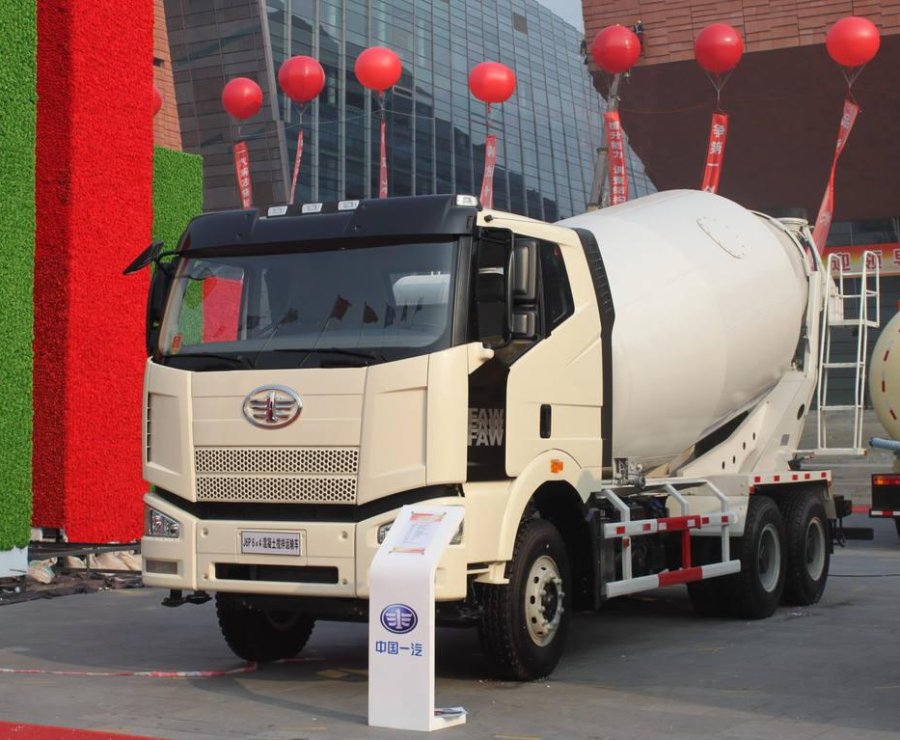

FAW JH6 6×4 Mixer Truck

Product Description:

The versatility of the FAW JH6 6x4 mixer truck makes it ideal for a variety of construction projects. From road construction and bridge building to urban development and large-scale infrastructure projects, this truck excels in every situation. Its rugged design and impressive payload capacity ensure you can tackle the most challenging jobs with ease. With the FAW JH6 6x4 mixer truck, you can mix and transport concrete efficiently, increasing productivity and reducing downtime.

inquiry now add to cart

Specifications

Overall Dimensions	9780mm2496mm3990mm(LWH)
Tare Weight	13950kg	Payload
Front Overhang	1500mm	Rear Overhang
Wheelbase	4000mm+1400mm	Track (F/R)
CHASSIS
Chassis Brand	FAW/ SHACMAN/ SINOTRUK HOWO
Chassis Model	CA5250GJB/ SX525OGJB/ ZZ1257N4048W, driving type 6x4
Cab	FAW J6P/ JH6, HW76, left hand drive, air-conditioner, one sleeper
Engine	FAWDE 6DM2-39E3, WEICHAI POWER WP10.340E32, WD615.47, 340/371/380/390hp, Euro II/ V emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L
Transmission	FAST 9JS119TA/ HW19710, No. of speeds: 9/ 10 forward 2 reverse
Steering	German ZF8098, turning system pressure 18MPa
Rear Axle	HC16 tandem axle, rated load 2x13ton, ratio 5.73
Wheels and tires	Rim 9.0-22.5; tire 12R22.5, 10 units; Spare wheel carrier: with one spare wheel
Brakes	Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake
MIXING SYSTEM
Mixing Volume	8,9,10,12cbm
Water Tank Volume	400L
Hydraulic Pump	Brand: ARK, Italy
Motor	Brand: ARK, Italy

Inquiry Now

Product Name:FAW JH6 6×4 Mixer Truck
