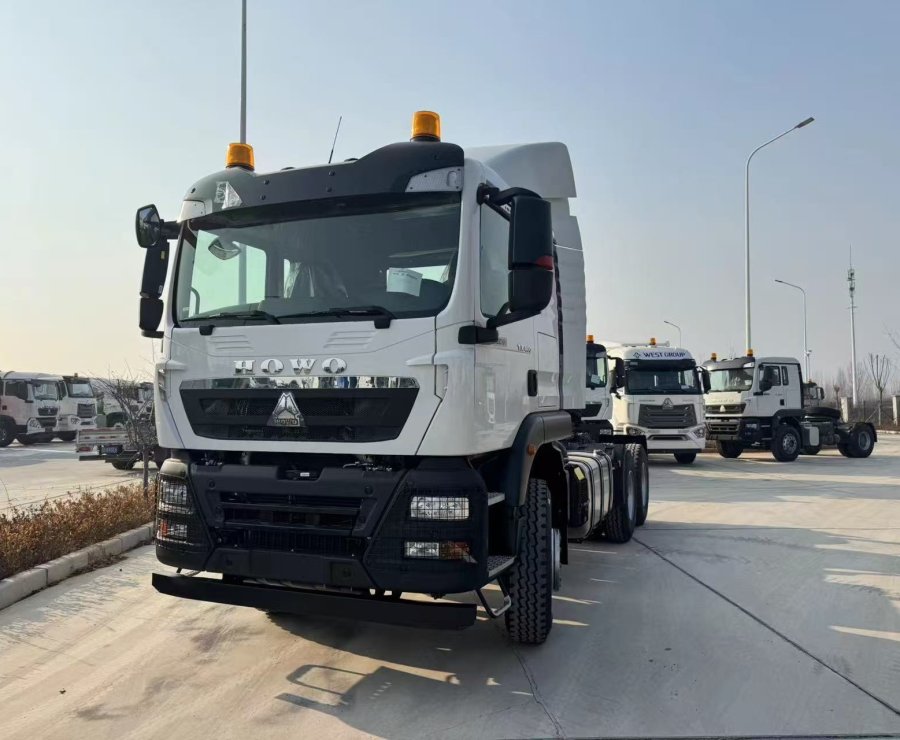

SINOTRUK HOWO TX 6×4 Tractor Truck

Product Description:

The SINOTRUK HOWO TX 6×4 is a cost-effective, heavy-workhorse solution for industries requiring high payload capacity and off-road durability. While it lacks advanced emissions technology for regulated markets, it excels in value and customization for developing regions.

inquiry now add to cart

Specifications

Model		Howo TX 6×4 Tractor Head
Chassis Model		ZZ4257V324GB1R
Drive type		6×4
Kerb Weight(kg)		8960
GCW(kg)		50000
Dimensions LxWxH(mm)		6800×2500×3225
Wheelbase(mm)		3200
Cabin	Model	TX-F
Engine	Model	MC11.43-30
	Horse Power(Hp)	430
	Maximum torque(N ·m/rpm)	1500N ·m/1050-1400rpm
	Rated power(kW/rpm)	319kW/1900rpm
	Emission	Euro Ⅲ
	Displacement	11 L
Transmission	Model	HW25716XAL
	TYPE	Manual-Automatic
	Gear position	14 forwards &2 reverses
AXLE	Front axle Load capacity(kg)	VGD71 (Drum) 7100
	rear axle Load capacity(kg)	MCJ12BGY 12000×2
	Ratio	3.70
Chassis	Thinkness(mm)	8/280
Suspension	Type	Leaf springs(3/5)
Steering	Model	Bosch
Fifth Wheel	Model	2.5 inch
Fuel tank capacity	Volume(L)	600
Tire	Mode	12.00R24,315/80R22.5
