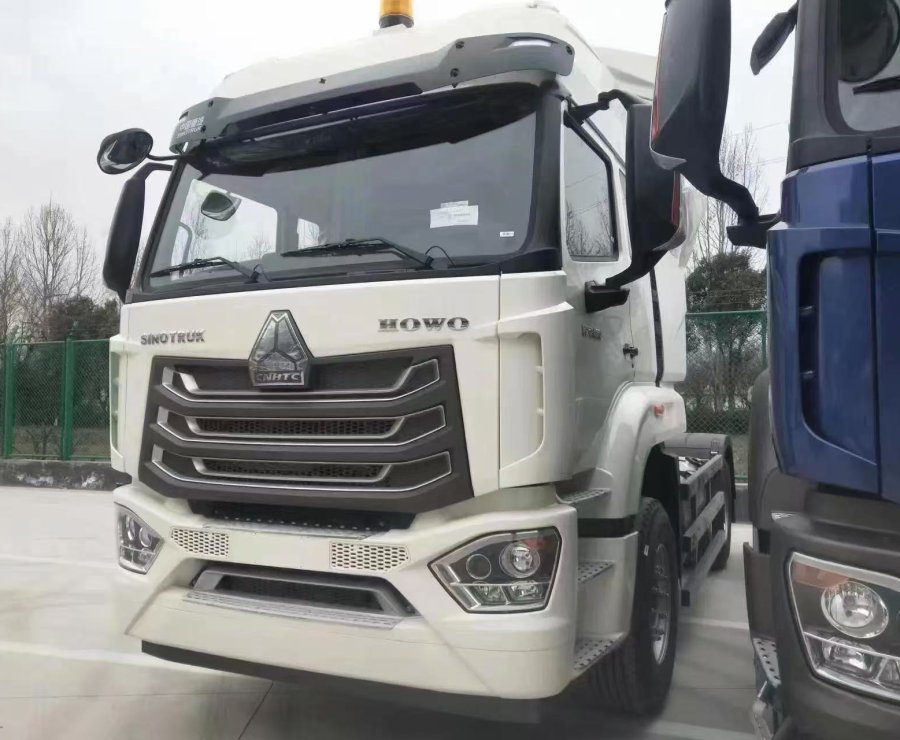

SINOTRUK HOWO NX (HAOHAN) 4×2 Tractor Truck

Product Description:

SINOTRUK HOWO NX (HAOHAN) 4×2 Tractor Truck is a cost-effective heavy-duty truck product launched by SINOTRUK which adopts standardized, modular and lightweight concepts and has good comfort, reliability and economy.

inquiry now add to cart

Specifications

Overall Dimensions	6160x2496x3850 mm
Wheel Base	3600mm
GVW	25000kg
Front axle loading capacity	1 x 7000
Rear axles loading capacity	1 x 13000
Engine	Brand	Sinotruk
	Model	MC11.44-50
	Type	6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Displacement	10.518L
	Horse Power (HP)	440
	Emission standard	Euro V
Max Speed	102 km/h
Tire	385/65R22.5-Front; 315/80R22.5-Rear With 1 spare tire
Transmission	AMT-HW25712XACL 12 forwards & 2 reverses with synchronizer
Steering	8118
Oil Tank	400L
Fifth Wheel	50# (2 inch);90#(3.5 inch)
Brake System	Service brake:dual circuit compressed air brake
	Parking brake (emergency brake):spring energy,compressed air operating on rear whels
	Auxiliary brake:engine exhaust valve brake
Electrics	Operating voltage:24V,negative grounded
	Batteries:2x12 V,165 Ah
	horn,headlamps,fog lights,brake lights,indicators and reverse light
Option	ABS+ASR+EBL+TPM;Automatic Break Clearance Adjusting Arm;Traveling Data Recorder;Integral mudguard;Split side protection;12V power socket
