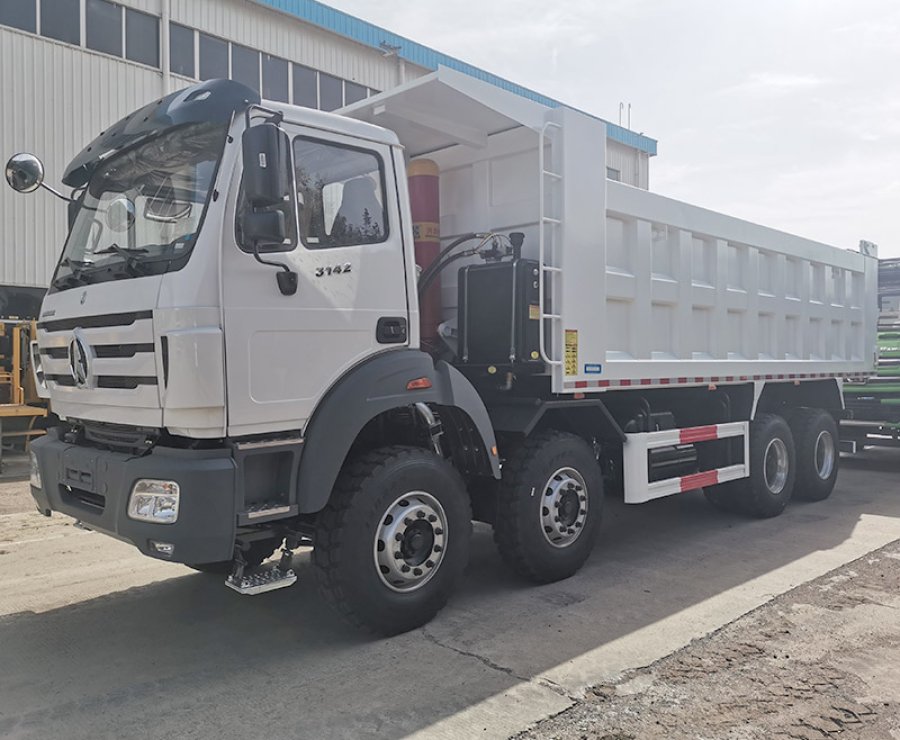

BEIBEN NG80 8×4 Dump Truck

Product Description:

The Beiben Trucks NG80 8×4 off-road dump truck offers advantages including strong load-bearing capacity, excellent off-road performance, high dumping efficiency, stable handling, outstanding durability, and low fuel consumption. It is a high-performance dump truck suitable for various construction site environments.

The overall designing of the vehicles is pleasing to the eyes. The brand new NG80B driving cab is created by the company. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the same level, and can satisfy the requirements of European ECER29 Security Regulations. The vehicle frame is molded by stamping and this guarantees the strength of the crossbeams. The axle technique unique to Benz vehicles boasts of features such as high reliability, fuel economy, high attendance rate, strengthened structure, large cargo capacity, all making it suitable for engineering projects such as road and bridge construction, water conservancy projects, as well as transportation of various heavy goods.

inquiry now add to cart

Specifications

Wheel base (mm)		1500+4750+1450
Engine	Model	WP12.420E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged,
	Fuel type	Diesel
	Min rate of consuming fuel(g/(kw.h))	185kw.h
	Rated Power / rotating (kw/(r/min)	309Kw/2100rpm
	Emission	EURO
	Maximum Torque / rotating speed(n.m/(r/min)	1750Nm/1200-1500rpm
	Displacement(ml)	11596
Fuel tanker capacity (L)		400
Transfer Case		LF200
Clutch	Model	GFX430, Single dry frictional disc,Hydraulic boosting
Gearbox	Model	12JS200T, mechanical type, 12 Forward speed gear.
Brake system	Service brake	Brake gap can be adjusted automatically, double circulation air brake system
	Assistant brake	Engine exhaust brake
	Park brake	Potential springs pressing on middle and rear wheels
Steering system	Model	ZF8098, whole circulation in ball type, hydraulic boosting
Suspension system	Rear Suspension	Non-free standing stabilization spring, stabilization suspension, 13pcs
Frame	Fish belly shape, variable width, variable sections
Front axle (Mercedes Benz Technology)	Double-shoe pneumatic brake, all driving steering axle
Middle and Rear axle (Mercedes Benz Technology)	Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tire	12.00R20,RADIAL
Qty of tire	13
Electrical system	Battery	2X12V/135Ah
	Generator	28V-35A
	Starter	5.4Kw/24V

Inquiry Now

Product Name:BEIBEN NG80 8×4 Dump Truck
