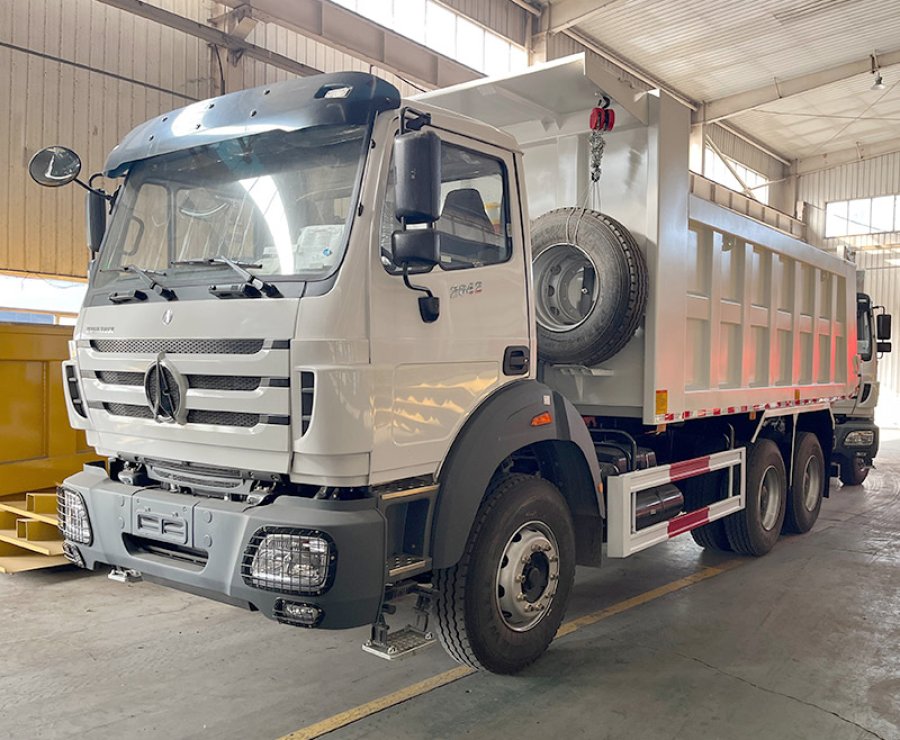

BEIBEN NG80 6×4 Dump Truck

Product Description:

The BEIBEN NG80 6×4 dump truck is a powerful and reliable workhorse built for demanding tasks. Its variety in power, proven components, and sturdy build make it a strong contender.

This model adopts the Mercedes-Benz NG80 prototype cab structure, which complies with the European ECER29 safety regulations. The chassis is equipped with the independently developed axles by Beibang and Weichai WP10 series diesel/gas engines, and is matched with FAWESTAR manual transmission.

inquiry now add to cart

Specifications

Engine Power	340hp 360hp 380hp
The total mass	25t
Cab	NG80B short cab without sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly;
Engine	WP10.340E32，water-cooled，four strokes，6 cylinders straight inline，turbocharged, Euro2 Emission,250Kw/2200rpm(340HP)
Clutch	Φ430,Diaphragm Spring，Hydraulic boosting
Loading Weight (kg)	30000kg
Loading Capacity Front Axle(Kg.)	Middle axle: HD7/016DGS-13/5.263
Loading Capacity Rear Axle(Kg.)	Rear axle: HL7/015DS-13/5.263
Tyre stype/Sizes	12.00R20（10+1sparetire)
Wheelbase(mm)	3800+1450
Front overhang/rear overhang(mm)	1410/1687
Overall Dimension	8825×2550×3430mm
TIPPER BODY
material	Q345 High carbon steel
Thickness of Dumper Box	Bottom:8mm, Side:6mm
Dumper box dimension	5800x2350x1500mm
Drive model	6x4, 6x6
Color	yellow, white, green...

Inquiry Now

Product Name:BEIBEN NG80 6×4 Dump Truck
