Truck Manufacturing Process: From Steel Plate to Finished Vehicle

A truck goes through four core processes from steel plate to final assembly: Stamping → Welding → Painting → Final Assembly. Let me walk you through how this is done in a modern truck factory.

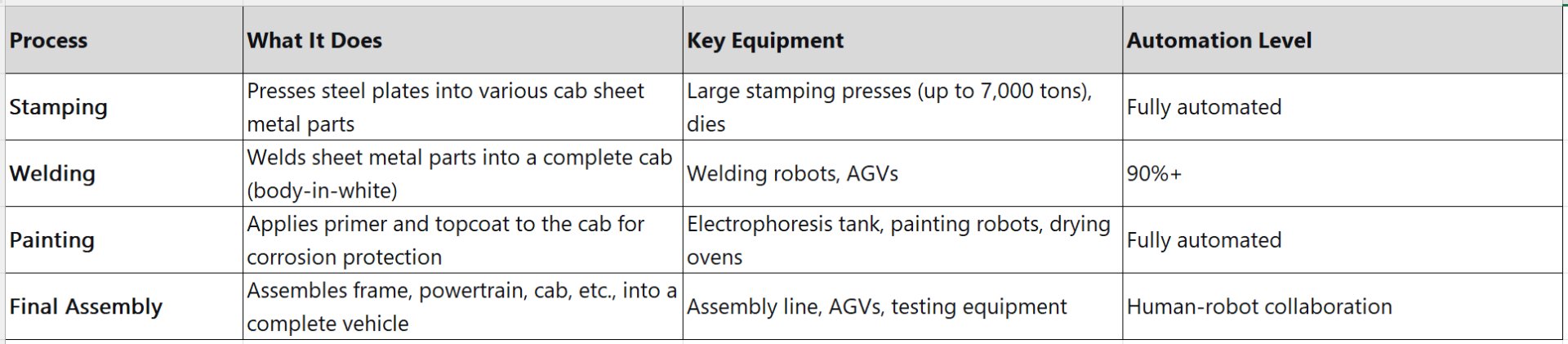

I. Overview of the Four Core Processes

???? Modern factory efficiency: Advanced heavy truck factories in China can produce one heavy truck every 4 minutes, with delivery times as short as 5 days from order placement.

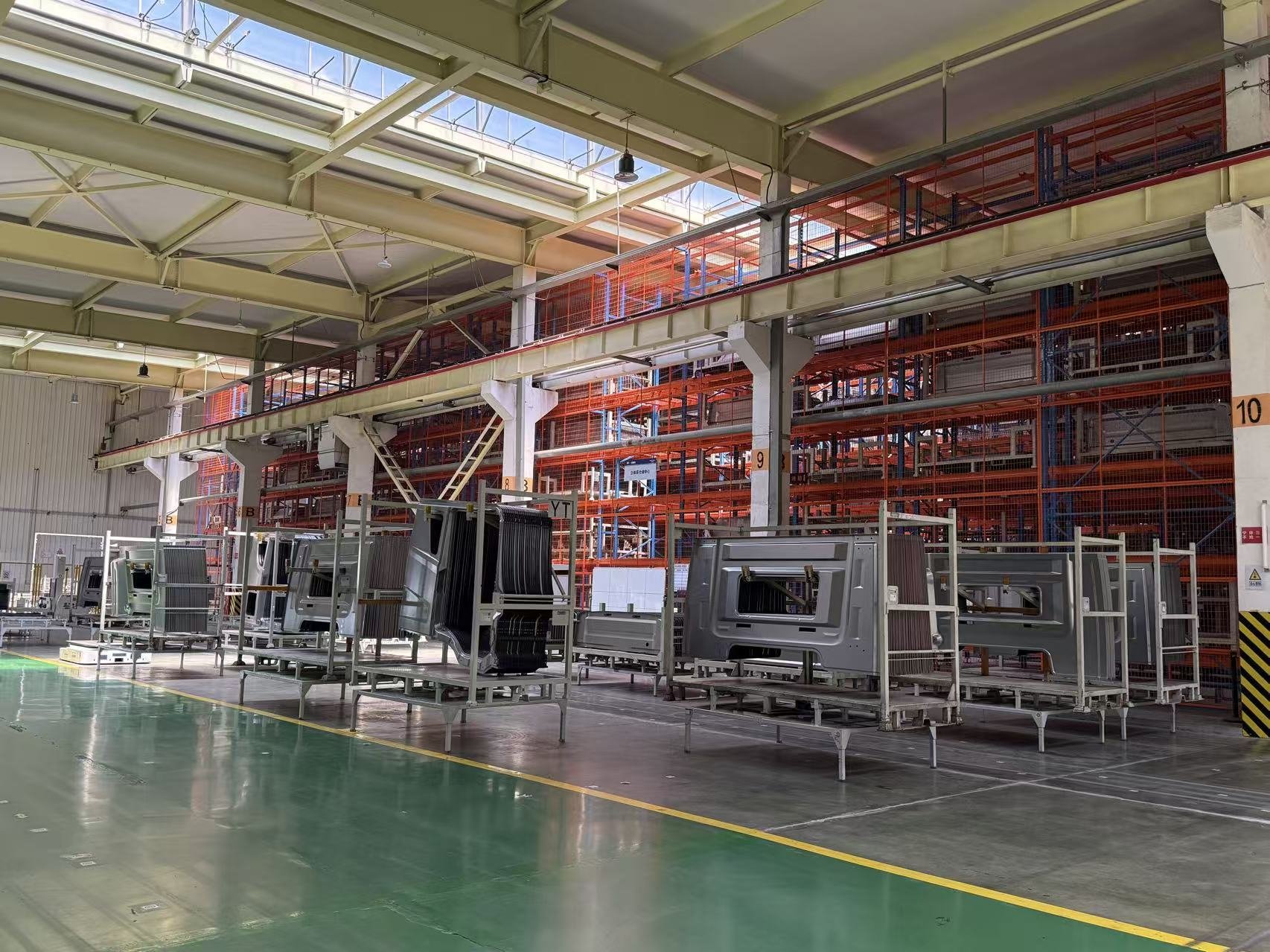

II. First Stop: Stamping Shop – Turning Steel into "Skeleton"

The first step in truck manufacturing starts with coils of steel plate.

Process Flow:

1. Uncoiling: Opening and flattening the steel plate coils

2. Blank Cutting: Cutting into appropriately sized steel plates for stamping

3. Stamping: Using large stamping presses to form the steel plates into various cab sheet metal parts (doors, side panels, roof, etc.)

Technical Highlights:

• Stamping presses can reach 7,000 tons, completing multiple steps in one stroke

• Hole position tolerance is controlled within 0.2mm

• Dies are the core—a mature, high-quality die set takes over six months to develop and costs hundreds of millions of RMB

• High-strength steel is used to ensure cab safety in collisions

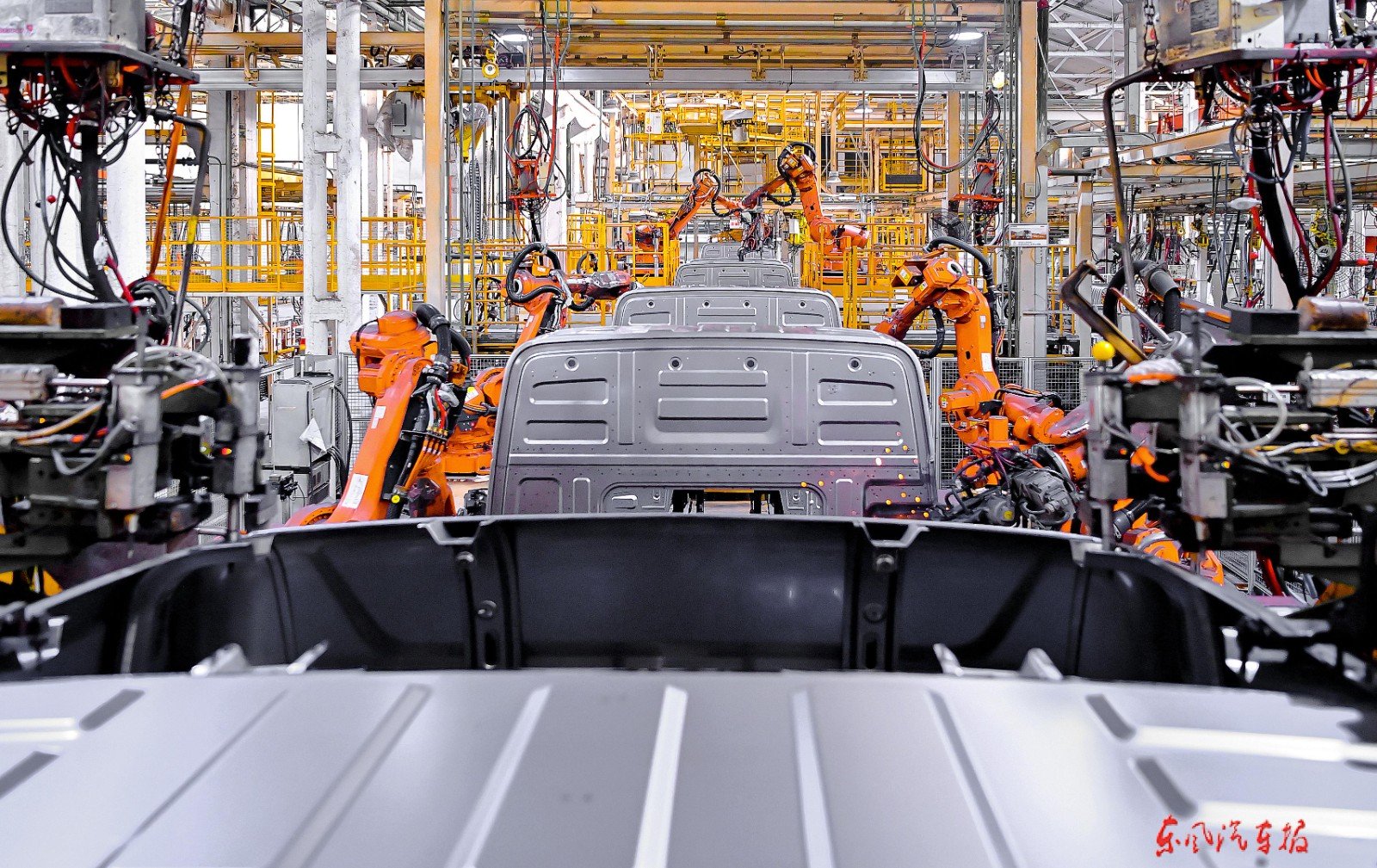

III. Second Stop: Welding Shop – The "Steel Tailor"

The stamped sheet metal parts are welded together in the welding shop to form a complete cab. This unfinished cab is called the "body-in-white."

Process Flow:

1. Sub-assembly Welding: Welding floor assembly, left side panel, right side panel, front panel, rear panel, roof, etc., separately

2. Main Body Welding: Assembling all sub-assemblies on the welding line to form the complete cab

3. Door Welding & Installation: Welding doors on a separate line and installing them onto the cab

4. Precision Inspection: Using coordinate measuring machines to monitor key points and ensure accuracy (some manufacturers achieve 0.3mm precision)

Technical Highlights:

• Advanced factories in China have achieved 100% robotic welding; for example, SINOTRUK's Laiwu factory has 100% automation for weld points

• Welding robots complete one weld point every 4 seconds, compared to 8 seconds for manual welding

• The welding shop requires minimal workers—SINOTRUK's Laiwu factory has 223 robots managed by just 5 workers, reducing labor needs to 1/80 of traditional levels

• Flexible production lines can produce multiple models simultaneously—SINOTRUK achieves flexible co-production across 3 platforms and 75 cab variants

• AI vision inspection systems can determine whether a weld point is qualified within 0.1 seconds

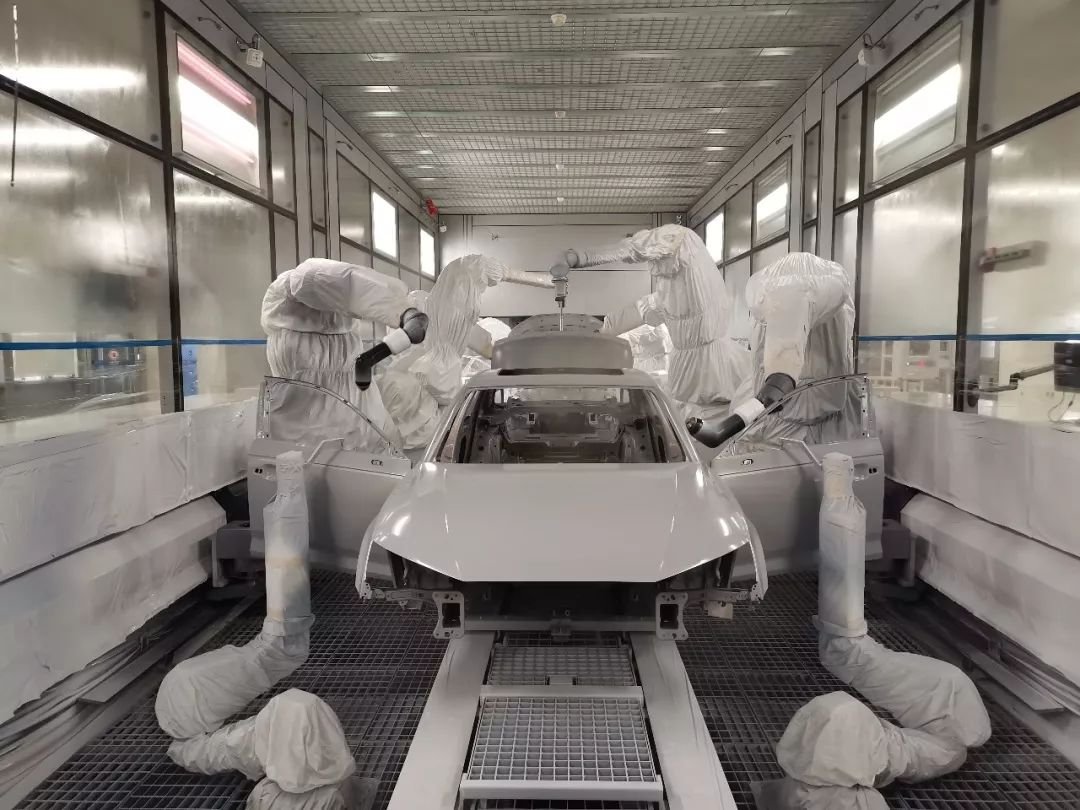

IV. Third Stop: Painting Shop – Giving the Cab Its "Armor"

The welded body-in-white undergoes a complex painting process to achieve corrosion protection, rust resistance, and an attractive finish.

Process Flow:

1. Pretreatment/Cleaning: Rust removal, residue cleaning, debris removal, followed by multiple stages of water washing (some manufacturers use 10 washing stages)

2. Electrophoresis: Immersing the entire cab in an electrophoresis tank to form a dense primer coating on the metal surface—this is the key to rust prevention

3. Drying: Drying in an oven at 200°C

4. Sealant Application: Applying sealant to all welds, inside and out, to ensure sealing and sound insulation

5. Spray Painting: Robots apply intermediate coat, topcoat, clear coat, and other layers

6. Final Drying: Drying after each coating layer

Technical Highlights:

• Advanced painting shops have no paint smell—fully enclosed automated spraying systems reduce VOC emissions by 40%

• The three-coat, three-bake process ensures a smooth, uniform finish

• The electrophoretic primer provides excellent corrosion resistance, ensuring the cab won't easily rust even in coastal areas

• Heat recovery systems can reclaim 95% of waste heat

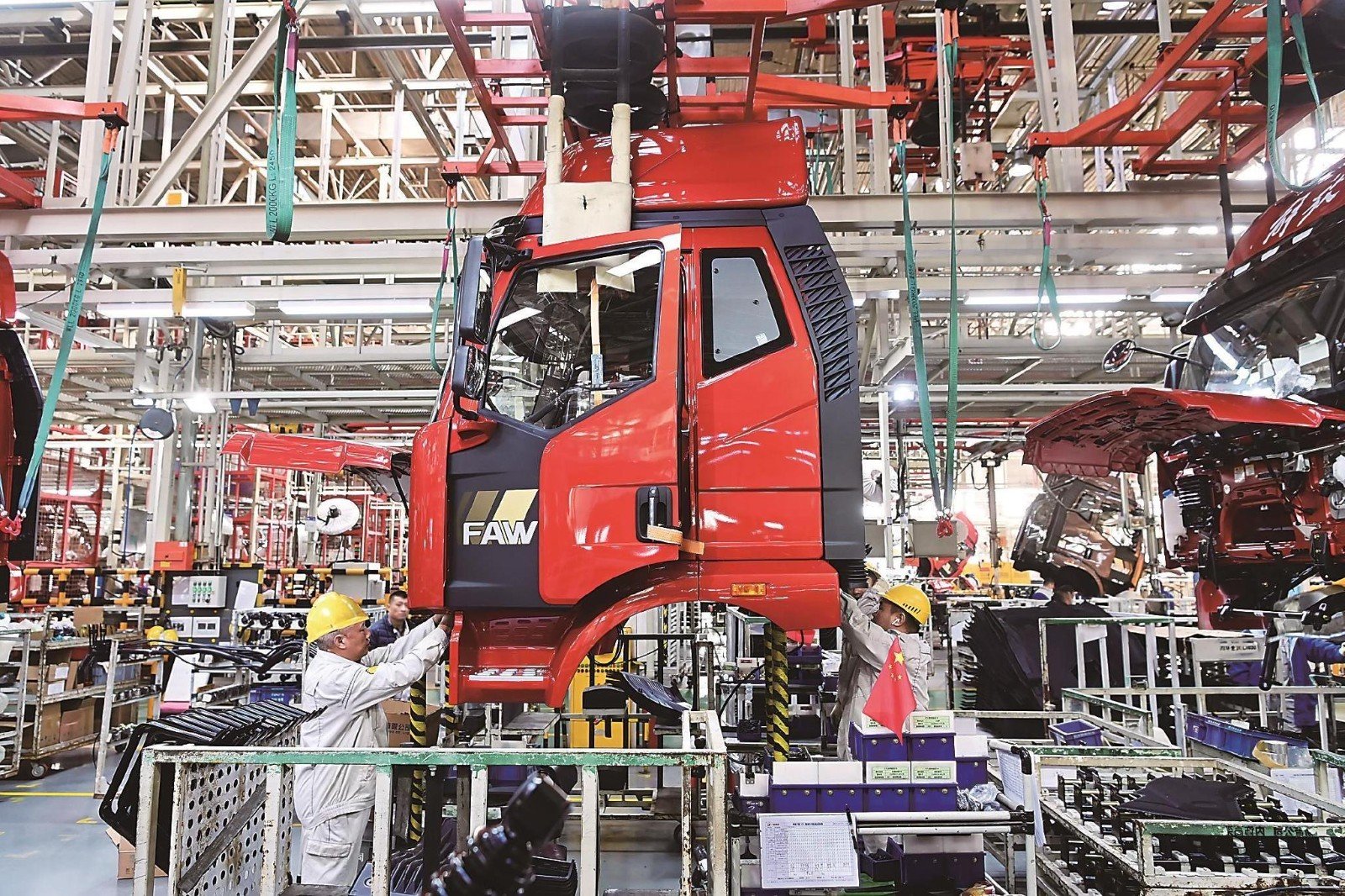

V. Fourth Stop: Final Assembly Shop – Where the Truck Is Born

The painted cab, along with the frame, powertrain, and other components, undergoes final assembly in the final assembly shop. This is where a complete truck is born.

Process Flow :

1. Frame Assembly: Assembling the frame from longitudinal and cross beams; each frame is assigned a chassis number (17-digit code) that guides every subsequent step

2. Cable and Harness Installation: Routing and connecting electrical cables and air lines

3. Suspension and Axle Installation: Installing suspension, front axle, middle axle, and rear axle

4. Frame Flipping: Flipping the frame to facilitate underbody component installation

5. Powertrain Installation: Engine and transmission are assembled on a sub-line, then hoisted onto the chassis

6. Cab Installation: Hoisting the painted cab onto the chassis

7. Tire Installation: Installing tires using robotic arms or manually

8. Fluid Filling: Automatically filling fuel, engine oil, coolant, etc.

9. Quality Inspection & Testing: Roller testing, computer calibration, road testing, etc.




Technical Highlights:

• Assembly lines can stretch up to 800 meters, with a single line capable of assembling 180 trucks per day

• Leading factories in China can achieve flexible co-production of 6 different models on the same line

• AGVs (Automated Guided Vehicles) replace traditional conveyor belts, offering greater flexibility for flexible production

• Each workstation has a quality checklist that must be signed off by the team leader before moving to the next step

• The white markings on engine oil pipes and water pipes are used for precise positioning—clamps must align exactly with the markings to ensure proper installation

VI. Quality Inspection – The Final Gate Before Delivery

After final assembly, every truck undergoes rigorous testing before leaving the factory:

1. Static Inspection: Checking all assembly points, cables, bolt torque, etc.

2. Water Leak Test: Simulating heavy rain to test cab sealing

3. Roller Test: Simulating driving conditions to test the powertrain

4. Dynamic Road Test: Actual road testing on complex test tracks within the factory grounds




Only after passing all tests is a brand new truck officially ready to be delivered to the customer.
