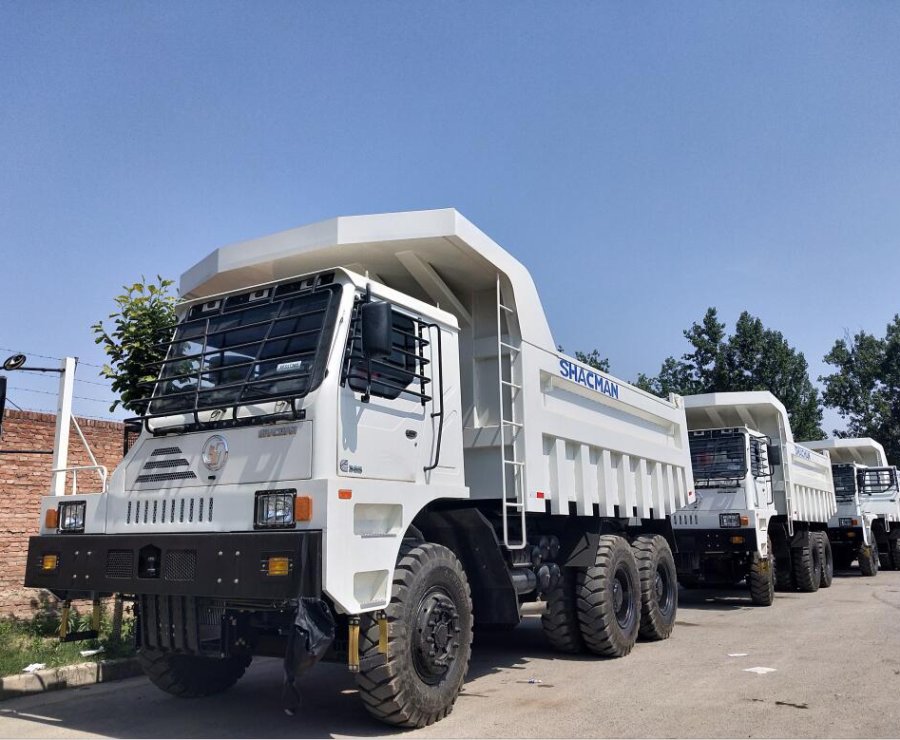

Shacman STL360 6x4 Off-road Mining Truck

Product Description:

Shacman 6×4 Offset Tipper Truck is a kind of dump truck with strong performance and wide application. Shacman 6×4 Offset Tipper Truckis designed to meet the needs of various transportation scenarios, especially in mining, construction and other fields that require heavy – duty transportation. This type of truck has a 6×4 drive mode, which provides strong power and stability, ensuring efficient and safe transportation operations.

inquiry now add to cart

Product Details

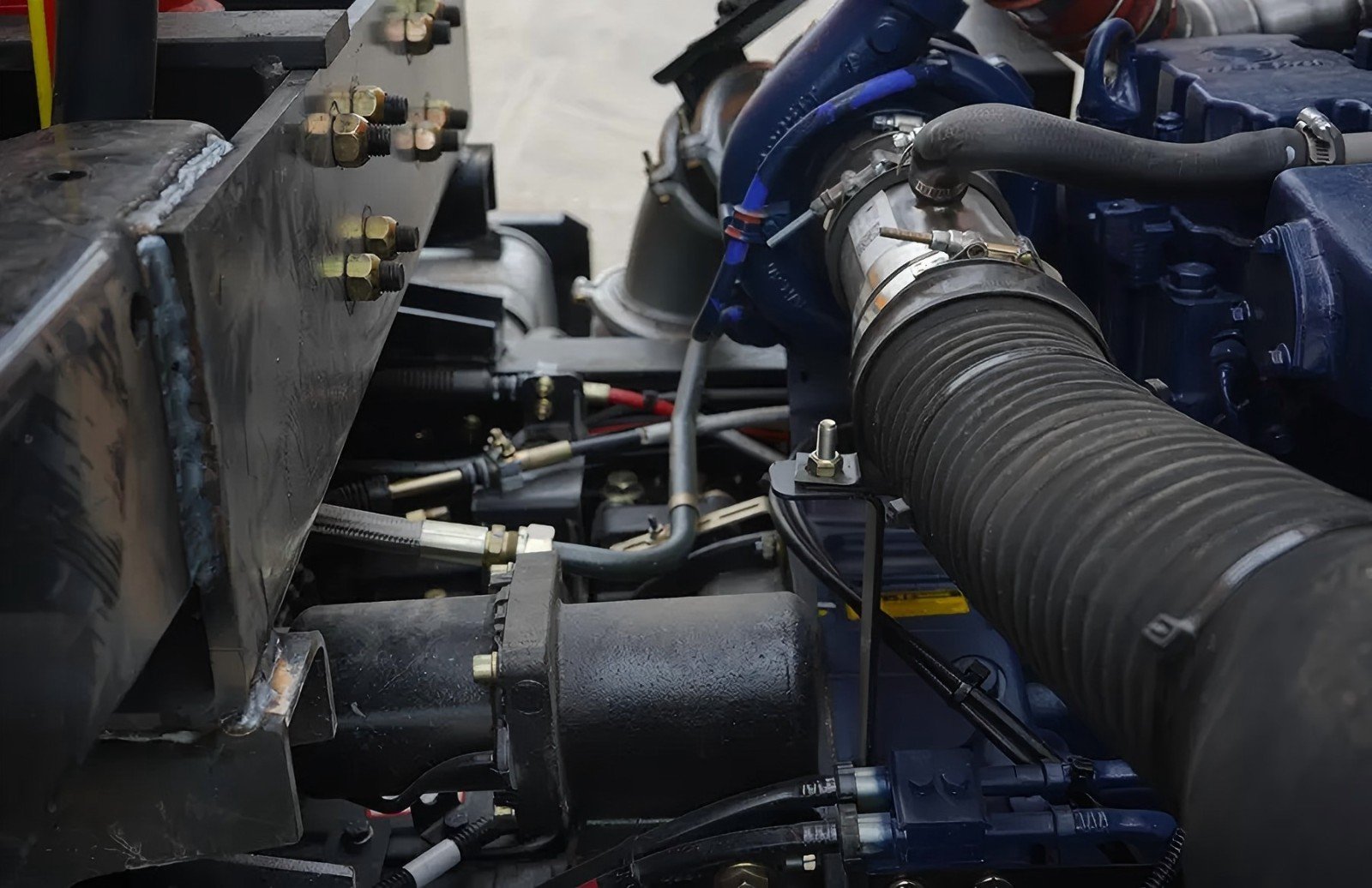

Powerful Engine Performance

It is equipped with high – horsepower engines. For example, some models have a 480HP engine, which can provide sufficient power for the truck to cope with various complex road conditions and heavy – load transportation tasks.

The engine adopts advanced technology, such as Euro 2 emission standard, which not only ensures power output but also meets environmental requirements to a certain extent.

Sturdy and Durable Structure

The Shacman 6×4 Offset Tipper Truck’s beam is a double – layer 380mm beam (10mm + 10mm), which has high strength and can withstand heavy loads.

The cargo box is made of high – quality materials. For example, the bottom thickness is 16mm, the side thickness is 12mm, and the front panel thickness is 10mm, making the cargo box strong and durable, suitable for transporting various materials.

Reliable Transmission and Braking System

It uses a manual transmission type, which is easy to operate and maintain, and can adapt to different driving speeds and load conditions.

The braking system is reliable, which can ensure the safety of the truck during driving and transportation. Some models may be equipped with ABS (Antilock Braking System) to improve braking performance and driving safety.

Specifications

Model	STL360
Drive Type	6×4
Kerb mass(kg)	24000
Payload(kg)	45000
Dimension(Lx W xH)(mm)	8530×3255×3950
Max. speed (km/h)	40
Minimum ground clearance	380mm
Minimum turning radius (m)	≤11
Max. gradeability (%)	≥32
Wheel base(mm)	3750+1560
Cab	Offset unilateral mine wide-body cab (RHD)
Engine Model	Cummmmins QSM11(420hp)
Displacement(L)	10.8
Engine form	Six-cylinder, in-line, water-cooled, supercharged and inter-cooled diesel engine
Rated Power(KW)	306
Maximum torque/speed (N.m /rpm)	1835/1400
Emission standard	Euro3
Gearbox	FAST7DS220
Front axle	Pengxiang 12T mine axle
Rear axle	Pengxiang 25T×2 mine axle
Frame	Double-layer beam (10+8) material: 600L
Steering system	Single circulation ball steering gear with booster cylinder
Clutch	430 pull type organic clutch
Brake system	Double circuit brake, parking brake
Electrical system	Single wire 24V, negative pole grounding
Air filter	Oil bath air filter
Fuel tank volume (L)	400L Aluminum alloy
Tire	14.00-24 With spare tire
Internal dimensions of cargo box (mm)	5600×3000×1500
Container board thickness (mm)	Bottom 14 side 10
Material of Cargo Box	T700/NM400
Lifting form	Front Lifting
