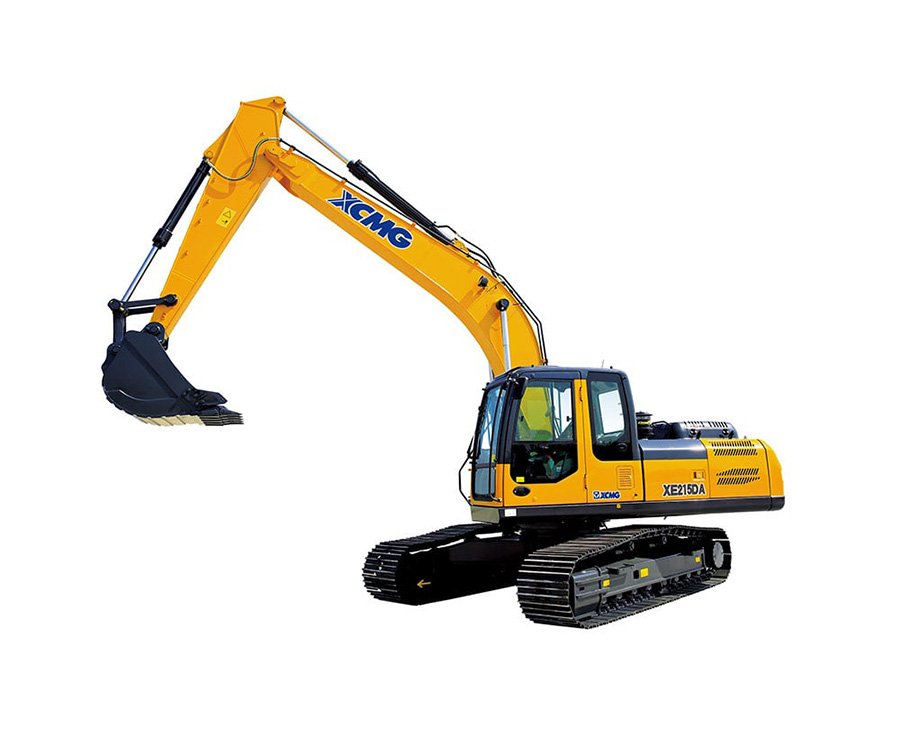

XCMG XE215DA Crawler Excavator

Product Description:

XE215DA adopts the latest separate pump independent control system and imported new main pump,and the efficiency improves 7% and fuel consumption will reduce 10%. It equipped with advanced XCMG excavator intelligent management system,and ensure the efficiency of excavator. Large new view cab, with lower noise, operating environment is more comfortable.

inquiry now add to cart

Specifications

Sales model		Unit	XE215DA
Operating weight		Kg	21500
Bucket capacity		m³	1.05
Engine	Model	/	QSB7
	No. of cylinders	/	6
	Output power	kw/rpm	135/2050
	Maximum torque/speed	N.m/rpm	740/900-1600
	Displacement	L	6.7
Main performance	Travel speed	km/h	5.4/3.1
	Swing speed	r/min	11.8
	Gradeability	°	≤35
	Ground pressure	kPa	47.2
	Bucket digging force	kN	149
	Arm digging force	kN	111
	Maximum traction	kN	184
Hydraulic system	Rated flow of main pump	L/min	2×216
Hydraulic system	Main safety valve pressure	MPa	34.3/37
Oil Capacity	Fuel tank capacity	L	400
	Hydraulic tank capacity	L	220
	Engine oil capacity	L	19.5
Appearance size	A Overall length	mm	9625
	B Overall width	mm	2990
	C Overall height	mm	3100
	D Width of platform	mm	2830
	E Track length	mm	4255
	F Overall width of chassis	mm	2990
	G Track width	mm	600
Working scope	A Max. digging height	mm	9620
	B Max. dumping height	mm	6780
	C Max. digging depth	mm	6680
	F Max. digging radius	mm	9940
	G Min. swing radius	mm	3530
Standard configuration	Length of boom	mm	5680
	Length of arm	mm	2910
	Bucket capacity	m³	1.05
Optional configuration	Length of arm	m³	2400

Inquiry Now

Product Name:XCMG XE215DA Crawler Excavator
