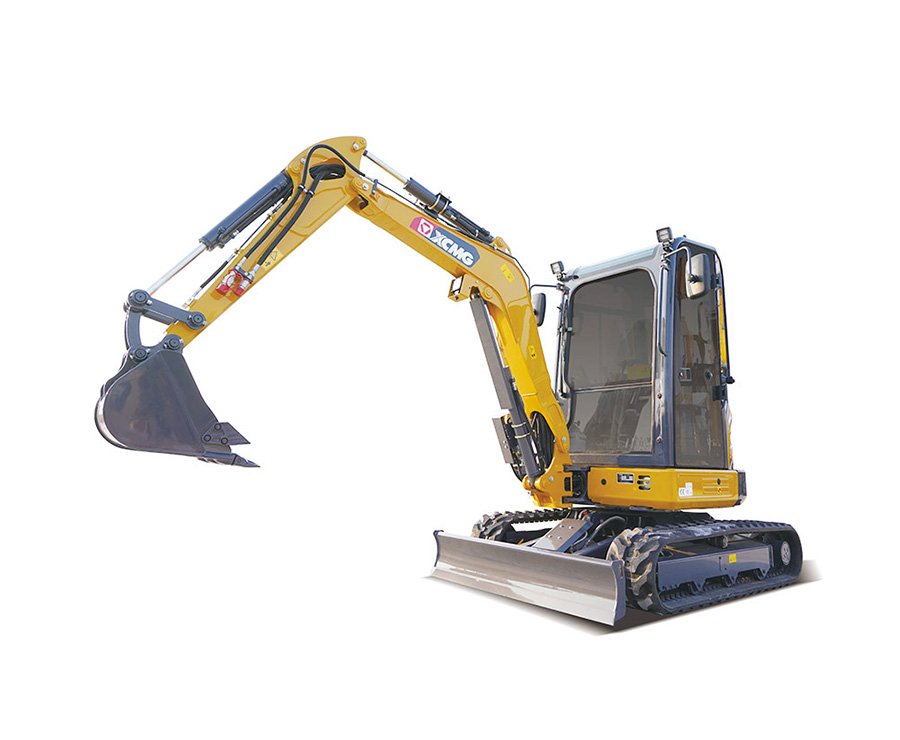

XCMG XE27U Crawler Excavator

Product Description:

With a powerful T4F engine and efficient hydraulics, the machine is widely applicable for landscaping, greenhouses and farms excavation , water and gas pipeline installation, basement construction and other projects. You can count on it to finish various jobs at confined space with its compact tail swing and variable angle boom of 75° and 55° for left and right.

inquiry now add to cart

Specifications

Description		Unit	XE27U
Operating weight		Kg	2780
Bucket capacity		m³	0.06
Engine	Model	/	D1105
	No. of cylinders	/	3
	Output power	kw/rpm	15.6/2400
	torque/speed	N.m	70.3/(1600r/min)
	Displacement	L	1.123
Main Performance	Travel speed(H/L)	km/h	3.1/2
	Gradeability	°	30°
	Ground pressure	kPa	26.4
	Bucket digging force	kN	23
	Arm croed force	kN	14
	Maximum traction	kN	29.7
Oil Capacity	Fuel tank capacity	L	33
	Hydraulic tank capacity	L	22
	Engine oil capacity	L	5.1
Appearance size	Overall length	mm	4190
	Overall width	mm	1500
	Overall height	mm	2580
	Width of platform	mm	1350
	Width of chassis	mm	1500
	Width of crawler	mm	300
	Track length on ground	mm	1560
	Crawler gauge	mm	1300
Working Range	Max. digging height	mm	4390
	Max. dumping height	mm	3120
	Max. digging depth	mm	2800
	Max. vertical wall digging depth	mm	2310
	Max. digging radius	mm	4750
	Min. swing radius	mm	1980

Inquiry Now

Product Name:XCMG XE27U Crawler Excavator
