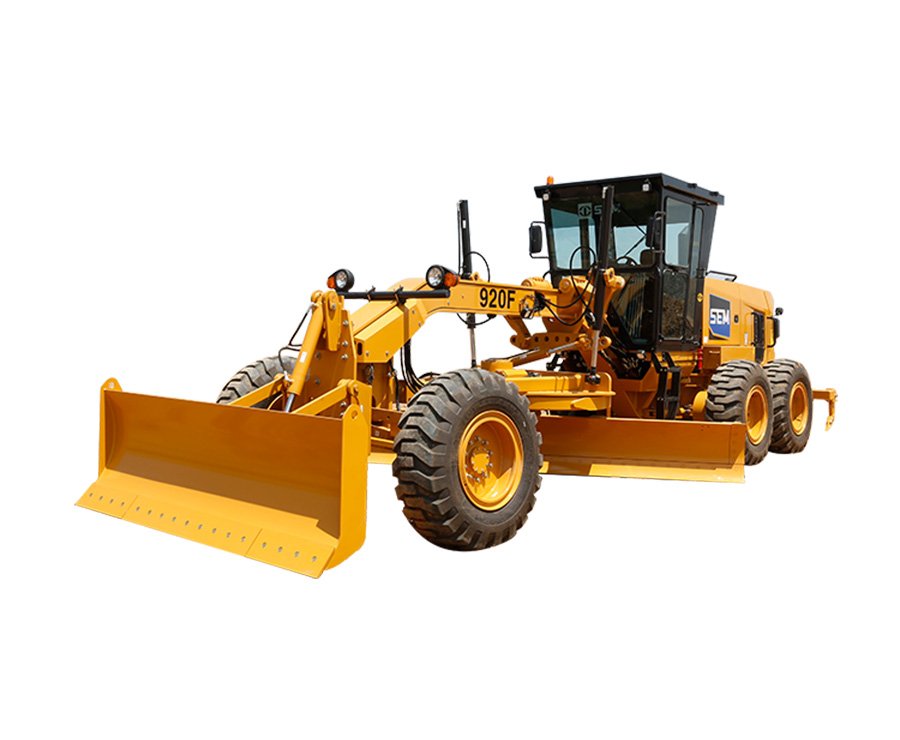

SEM 920F Motor Grader

Product Description:

The SEM F series Tier 2 Motor Grader is equipped with an SDEC engine and a PPPC load-sensing hydraulic system for consistent and precise blade movement and reduced fuel consumption. The SEM rear tandem axle, designed and manufactured by Caterpillar, leverages the proven Caterpillar tandem axle design to deliver differentiated reliability and a longer service life, resulting in lower owning & operating costs.

inquiry now add to cart

Specifications

Standard Weight (Non ROPS base)	15,418kg
Standard Weight (with ROPS)	15,735kg
Overall Dimensions (LWH)	11,1002,6303,140mm
Travel Speed (Forward/Reverse)	40/25 km/h
Max. Drawbar traction	87kN
Frame Articulation Angle	20°
Min. Turning Radius	7,800mm
Tire	17.5-25 12PR
Engine Manufacturer	SDEC
Engine Model	SC7H200.2G2
Max. Torque	760N.m @ 1400RPM
Net Power	147kW @ 2200RPM
Emission	Tier 2
Brand / Manufacturer	Advance/HangChi
Type	Converter, Powershift
Forward / Reverse Gears	6 Forward / 3 Reverse
Brand / Manufacturer
Differential	No-Spin
Service Brake	Air over oil, Disc
Oscillation Front Up	15°
Oscillation Front Down	25°
Ground Clearance	630mm
Wheel Lean, Left / Right	±18°
Max. Oscillation	±16°
Steering Range, Left / Right	±47.5°
Blade Width, Standard	3,974mm
Blade Width, Optional	3,669/4,279mm
Blade Height	610mm
Blade Thickness	20mm
Float Function	YES
Max. Cutting Depth	715mm
Max. Lifting Height	475mm
Fuel Tank	280L
Engine Oil	17.5L
Coolant	50L
Transmission	28L
Differential Case	33L
Tandem Case, Each Side	62L
Circle Drive, Non Slip Clutch	2L
Circle Drive, With Slip Clutch	7L
Hydraulic Oil Tank	55L
