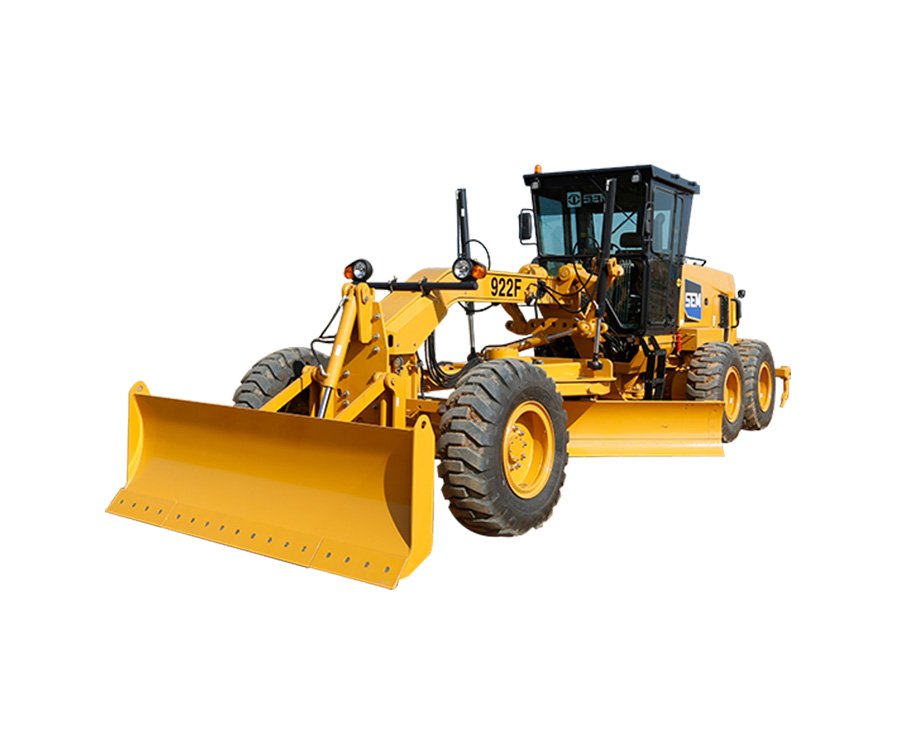

SEM 922F Motor Grader

Product Description:

This machine, featuring its mainstream engine and drivesystem, delivers the utmost traction available in theindustry and remarkable operational efficiency. lt comesequipped with a heavy-duty slewing bearing working deviceand cutting edges specially developed by Shantui, ensuringsmooth rotation, superior resistance against wear, andexceptional resilience against impacts.

inquiry now add to cart

Specifications

ITEMS	SEM922F
Operation Weight(Base Machine)	16,722kg
Front Axle(kg)	4,592
Rear Axle(kg)	11,748
Overall Dimensions(LWH)	11,1002,6303,360mm
Max. Traction Force	≥93KN
Max. Forward Speed(km/h)	40
Max.Reverse Speed(km/h)	25
Frame Articulation Angle	20°
Engine Brand	SHANGCHAI
Engine Model	SC9DF220G3
Transmission Type	Hangchi 6WG180 F6/R3
Rated Power(kw)	162
Rated Speed(rpm)	2200
Rear Axle/Tandem	SEM ST22
Displacement(L)	6.5
Oscillation(Front up/Rear up)	15/25°
Steering Angle(Left/Right)	47.5°
Hydraulic System	Load sensing,PPPC
Tires	17.5-25-12PR,E3/L3
Rim Specifications	14.00/1.5
Front axle deflection angle(°)	18±1
Front axle swing angle(°)	16±1
Minimum ground clearance of front axle(mm)	630
Maximum steering angle of the front axle	47.5±2.5
Maximum articulation angle(°)	±20
minimum turning radius(m)	≤7.8
