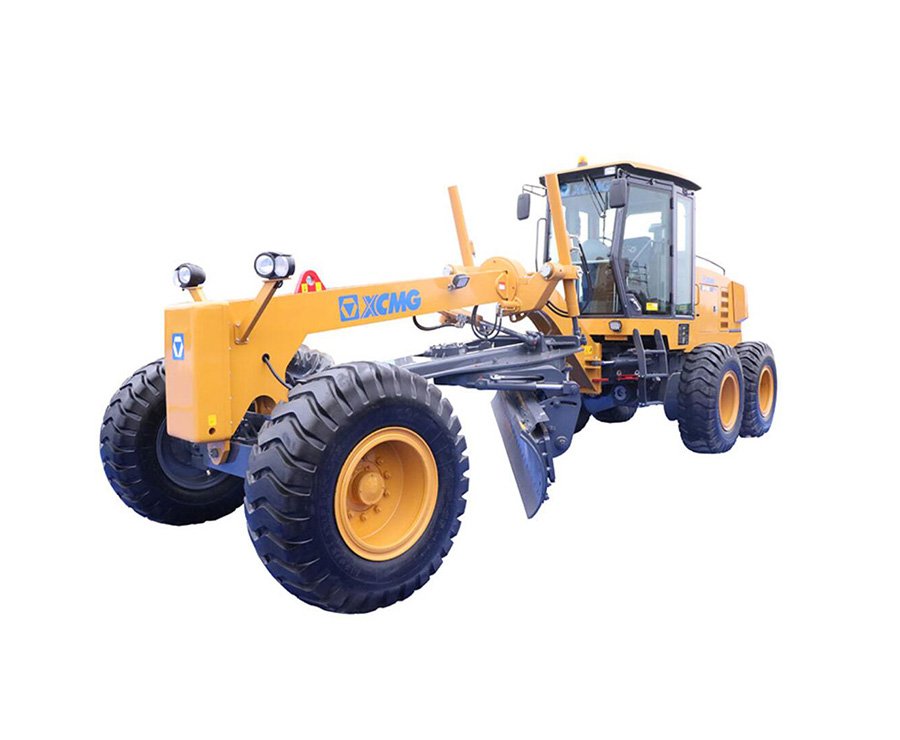

XCMG GR180 Motor Grader

Product Description:

GR180 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc., also can be used in heavy duty and mining areas. The machine features compact structure and high reliability, is the indispensable construction machinery for national defense projects, urban and rural roads and other building construction and water conservancy construction, farmland improvement, etc.

inquiry now add to cart

Specifications

Item			GR180
Basic parameters	Engine model		6CTA8.3-C190-II
	Rated power/speed		142kW/2200rpm
	Overall dimension (standard)		8900x2625x3420
	Total weight (standard)		15400 kg
	Tire specification		17.5-25
	Ground clearance (front axle)		430mm
	Tread		2156mm
	Space of front and rear axles		6219 mm
	Space of middle and rear wheels		1538 mm
Performance parameters	Forward velocity		5/8/11/19/23/38km/h
	Reverse speed		5/11/23km/h
	Tractive effort f=0.75		≥79 kN
	Maximum gradeability		≥25%
	Tire inflation pressure		260kPa
	Working system pressure		18MPa
	Transmission pressure		1.3-1.8Mpa
Working parameters	Maximum steering angle of front wheel		±50°
	Maximum slant angle of front wheel		±17°
	Maximum oscillating angle of front axle		±15°
	Maximum oscillating angle of equilibrium box		±15°
	Maximum steering angle of frame		±27°
	Minimum turning radius		7.3m
	Scrape knife	Maximum lift height	450mm
		Maximum cutting depth	500mm
		Maximum tilt angle	90°
		Cutting angle	28°-70°
		Angle of revolution	360°
		Length & chord height	3965x610mm
