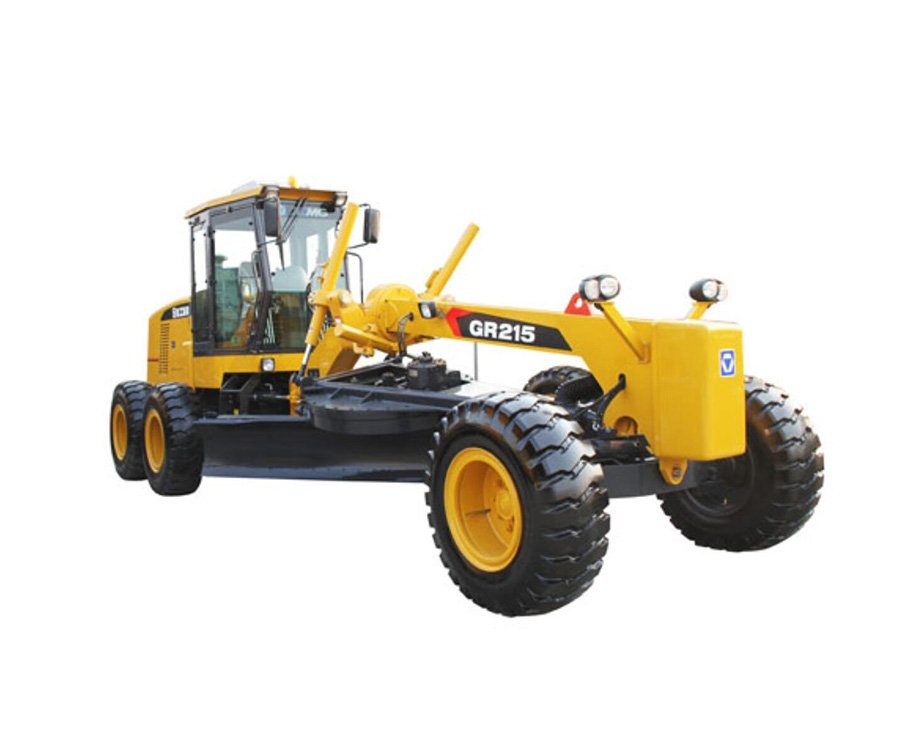

XCMG GR215 Motor Grader

Product Description:

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

inquiry now add to cart

Specifications

Description	Unit	Parameter value
Rated power/speed	kW/rpm	160/2200
Overall dimension (standard)	mm	8970x2625x3420
Total weight (standard)	kg	16100
Ground clearance (front axle)	mm	430
Tread	mm	2156
Space of front and rear axles	mm	6219
Space of middle and rear wheels	mm	1538
Forward velocity	km/h	5/8/11/19/23/38
Reverse speed	km/h	2005/11/23
Tractive effort f=0.75	kN	113.8
Maximum gradeability	%	30
Tire inflation pressure	kPa	260
Working system pressure	MPa	18
Transmission pressure	MPa	1.3-1.8
Minimum turning radius	m	7.3
