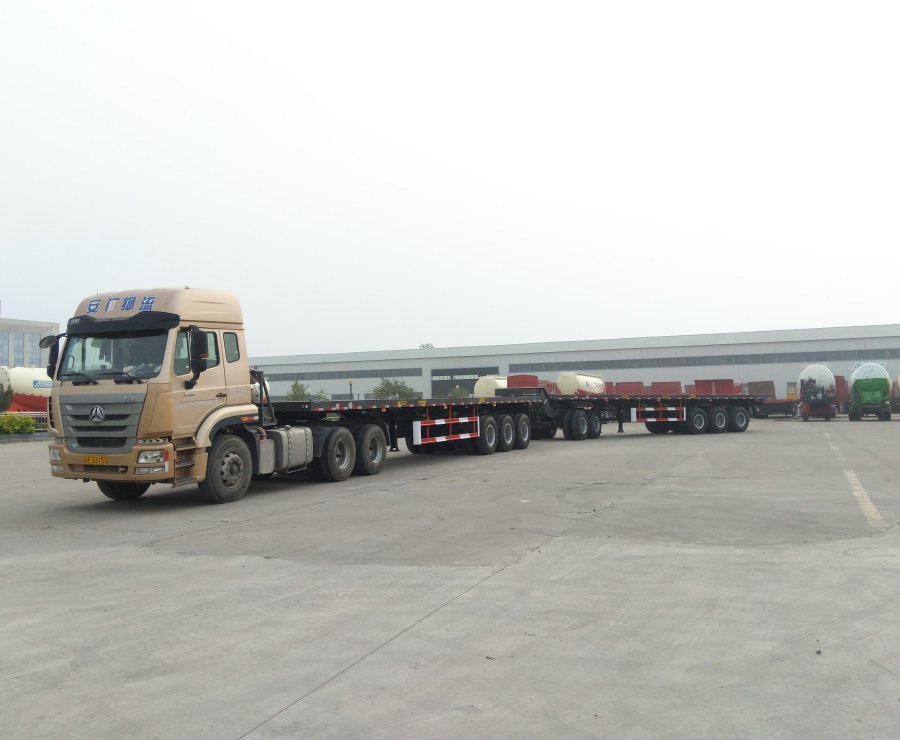

Super Link Flatbed Semi Trailer

Product Description:

Super link flatbed trailer is also called interlink trailer.SUNSKY link a 20ft axle flatbed trailer and a 40ft axle flatbed trailer together.This super link flatbed trailer is used to transport containers and dry cargo,make shipping more efficient.

inquiry now add to cart

Specifications

Front Semi Trailer Overall dimension	9,800×2,550×1,650mm (Customization supported)
Rear Semi Trailer Overall dimension	12,500×2,550×1,650mm (Customization supported)
Axle	BPW/FUWA/Factory brand, 13T/16T/20T
Suspension system	Mechanical Suspension
Main beam	Beam height 500mm, Top plate 14mm, Bottom plate 16mm, Middle plate 8mm. (Customization supported)
Bottom plate	3mm checkered plate (Customization supported)
Container lock	Front 4 sets(1 20FT container), rear 12 sets (1 40FT or 2 20FT container)
Tire	Triangle/ Linglong/ Longmarch brand, 11.00R20/ 12.00R22.5/ 12.00R20/ 315/80R22.5 (include one spare tire)
King Pin	3”(90mm) / 2.5” (50mm)
Spare wheel holder	1 (Customization supported)
Toolbox	1 (Customization supported)
Landing gear	JOST/ FUWA/ Factory brand Standard 28 tons
Braking system	Dual line pneumatic brake system
ABS	WABCO brand, 4S/2M
Electrical system	Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light
Side guard	Standard
Paint color	Customization supported
Packaging	Waxing before departure

Inquiry Now

Product Name:Super Link Flatbed Semi Trailer
