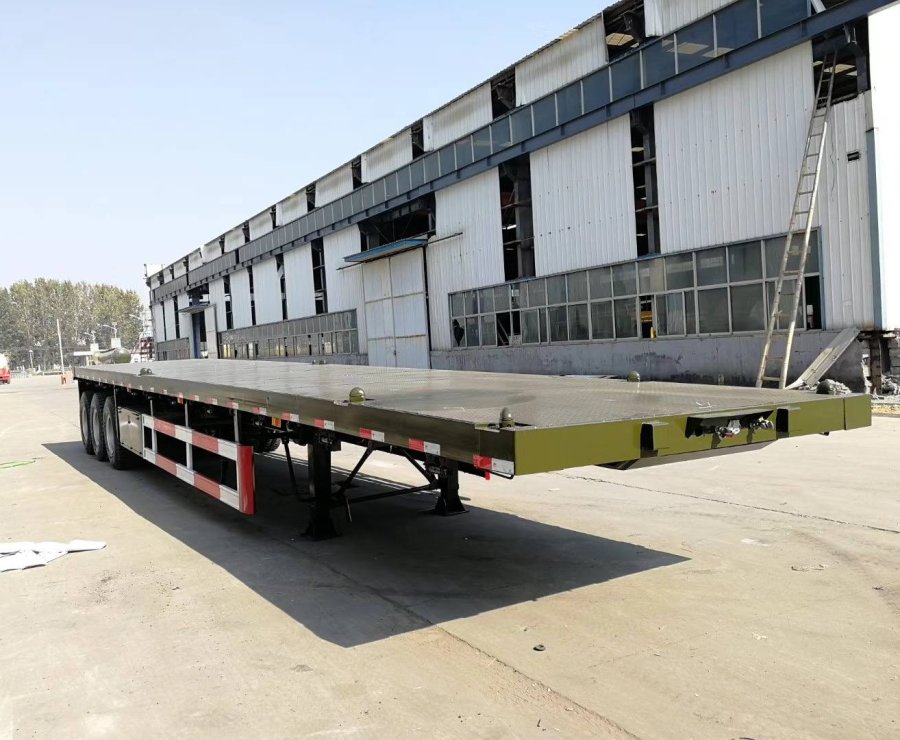

3 Axle Flatebd Semi Trailer

Product Description:

3 Axle Flatebd Semi Trailer is using for construction equipment, wind turbines, transformers, boats, bridge entrances, wheeled cranes and similar products transportation. Since it has a low-bed structure, it provides an advantage in terms of height compared to other flat platform semi-trailers.

inquiry now add to cart

Specifications

Overall dimension	12,500×2,550×1,650mm (Customization supported)
Loading weight	40T/50T/60T
Function	Carries one 40ft or two 20ft or one 20ft lSO container Large cargo such as wood and steel plates
Axle	BPW/FUWA/Factory brand, 13T/16T * 3
Suspension system	Mechanical Suspension
Main beam	Beam height 500mm, Top plate 14mm, Bottom plate 16mm, Middle plate 10mm. (Customization supported)
Bottom plate	3mm checkered plate (Customization supported)
Container lock	4/ 8/ 12 PCS
Tire	Triangle/ Linglong/ Longmarch brand, 11.00R20/ 12.00R22.5/ 12.00R20/ 315/80R22.5 12 pcs (include one spare tire)
King Pin	3”(90mm) / 2.5” (50mm)
Spare wheel holder	1 (Customization supported)
Toolbox	1 (Customization supported)
Landing gear	JOST/ FUWA/ Factory brand Standard 28 tons
Braking system	Dual line pneumatic brake system
ABS	WABCO brand, 4S/2M
Electrical system	Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light
Side guard	Standard
Paint color	Customization supported
Packaging	Waxing before departure

Inquiry Now

Product Name:3 Axle Flatebd Semi Trailer
