5 Axle Flatbed Semi Trailer

Product Description:

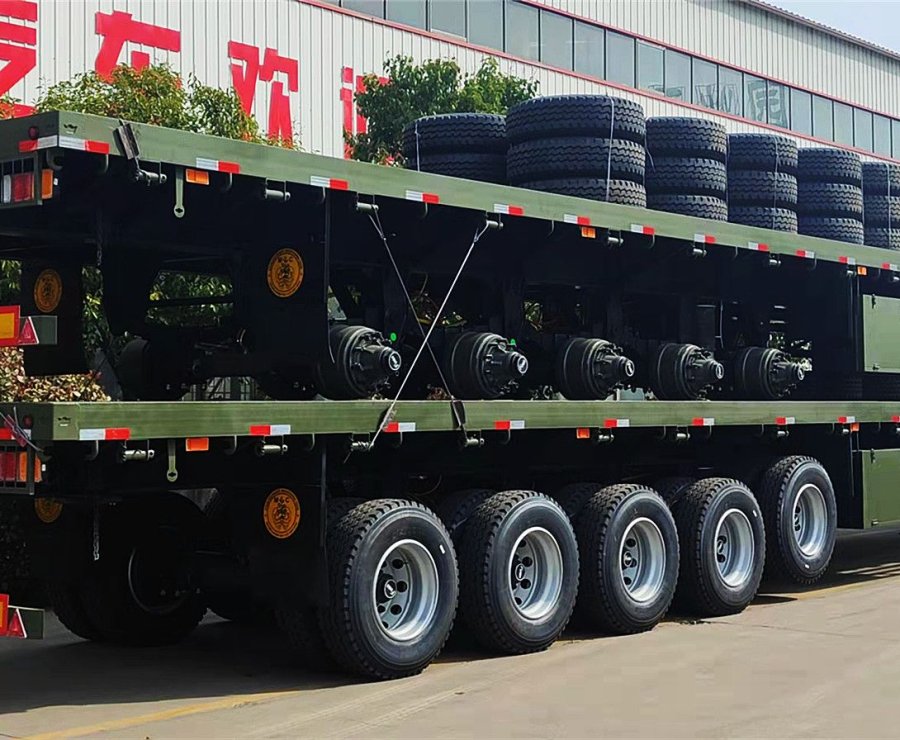

The five-axle flatbed semi-trailer is a highly functional transportation trailer, featuring strong load-bearing capacity, good stability and wide applicability. Mainly used for the road transportation of large quantities of goods such as steel and mechanical equipment.

inquiry now add to cart

Specifications

Overall dimension	17,000×2,550×1,650mm (Customization supported)
Loading weight	70T/80T/90T/100T
Function	Carries one 40ft/45ft or two 20ft or one 20ft lSO container Large cargo such as wood and steel plates
Axle	BPW/FUWA/Factory brand, 13T/16T/20T * 5
Suspension system	Mechanical Suspension
Main beam	Beam height 500mm, Top plate 20mm, Bottom plate 24mm, Middle plate 18mm. (Customization supported)
Bottom plate	5mm checkered plate (Customization supported)
Container lock	4/ 8/ 12 /14 PCS
Tire	Triangle/ Linglong/ Longmarch brand, 11.00R20/ 12.00R22.5/ 12.00R20/ 315/80R22.5 20 pcs (include one spare tire)
King Pin	3”(90mm) / 2.5” (50mm)
Spare wheel holder	1 (Customization supported)
Toolbox	1 (Customization supported)
Landing gear	JOST/ FUWA/ Factory brand Standard 28 tons
Braking system	Dual line pneumatic brake system
ABS	WABCO brand, 4S/2M
Electrical system	Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light
Side guard	Standard
Paint color	Customization supported
Packaging	Waxing before departure

Inquiry Now

Product Name:5 Axle Flatbed Semi Trailer
