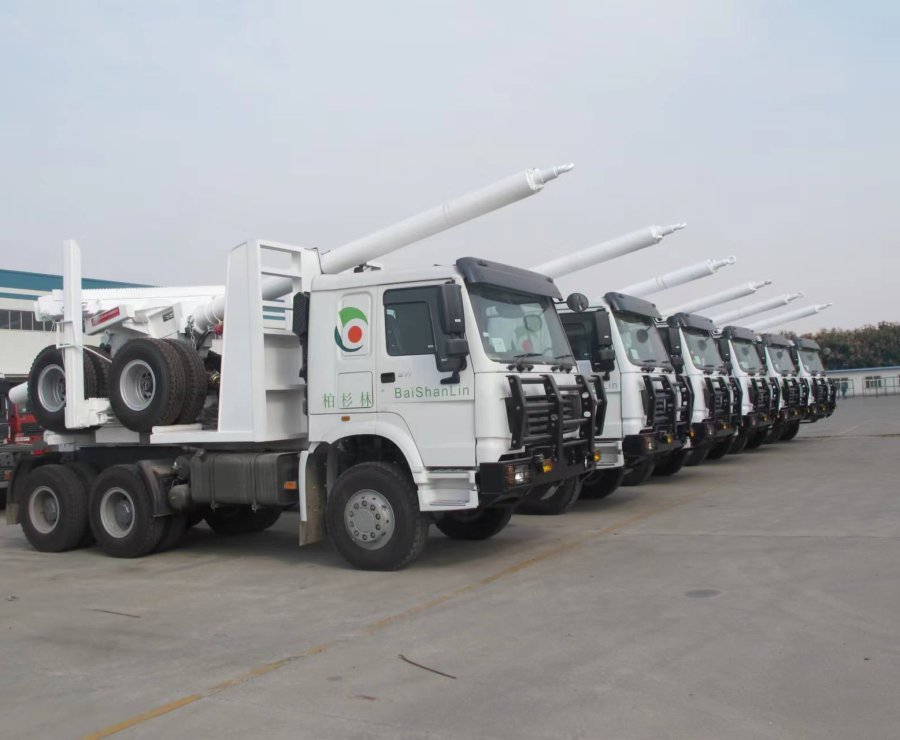

SINOTRUK HOWO 6×4 Log Truck

Product Description:

Sinotruk Howo 6x4 Wood Log Transport Truck, powered by a Weichai WP12.400E201 diesel engine with 400hp, features a strong build ideal for heavy-duty logging and transport. Equipped with HW19710 manual transmission, ABS, Euro 2 emission standards, air suspension seats, and optional cabin configurations including air conditioning. Supports reliable after-sales services like free spare parts and online support.

share:

Specifications

Chassis Model

ZZ4257V3247B1(R) (Left/ Right Hand Driving Type Optional)

Engine

Model: WP12.400, Euro II, 400 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 11.596 L

Clutch

Single-plate dry diaphragm spring clutch, diameter 430mm,hydraulically operating with air assistance

Gearbox

SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO)

Front Axles

VGD95, 9500kg with drum brake system

Rear Axles

HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73

Suspension

Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer

Steering System

power steering, hydraulic steering with power assistance

Braking System

Front drum rear drum brake, four-circuit protection valve
Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms

Tires

12.00R20 (12.00R22.5, 315/80R22.5 optional), with one spare tyre

Fuel Tank Volume (L)

300

Dead Weight

12020/8630

Gross Vehicle Weight (kg)

25000

Rated Loading Weight (kg)

12850; 12640 optional

Overall Dimension
(LxWxH) (mm)

10000*3200*4000mm

Wheelbase (mm)

3200+1500

Min.Ground Clearance (mm)

314

Approach/Depart Angle(°)

19/ (27/65)

Gradeability (%)

≥50

Min. Turning Diameter (m)

15

Rod trailer dimension

8750MM*270MM*12MM

Others

Fuwa 16-ton axle, Fuwa single point suspension, 8 * 315/80R22.5 steel wire tire , spare tire installation position reserved.

Remark (Engine Power Option)

336HP; 430HP
