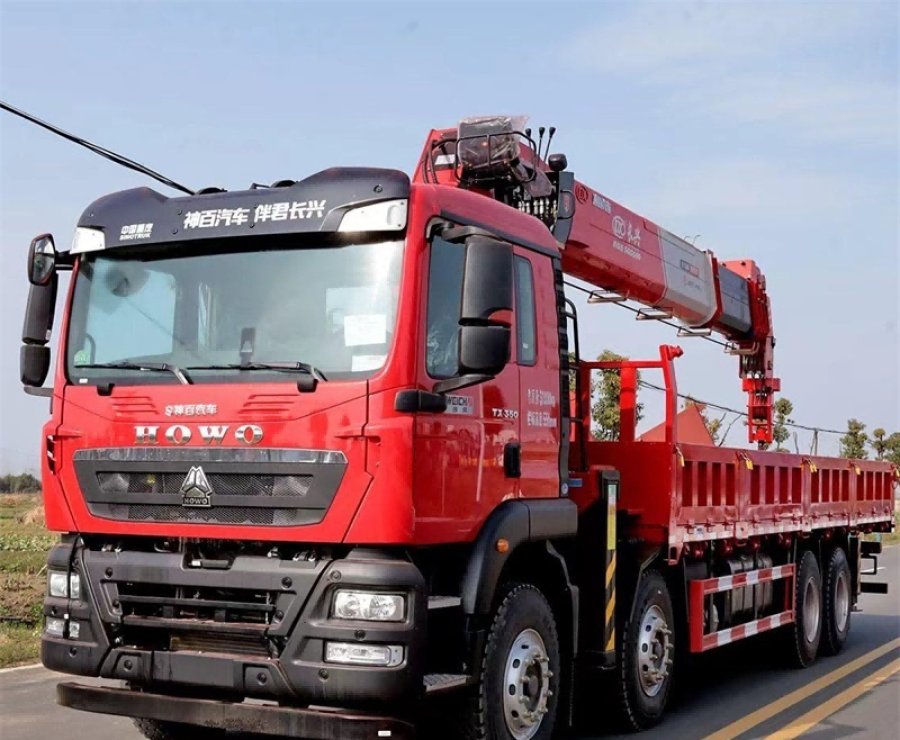

SINOTRUK HOWO TX 8×4 Mounted Crane Truck

Product Description:

HOWO truck with crane adopts a high-strength frame and a leaf-less air suspension, providing good load-bearing capacity and driving stability. HOWO truck with crane is equipped with a WEICHIA WP10 series high-horsepower engine, which has low-speed high torque and excellent heavy-load climbing ability. Its cab adopts high sound insulation technology to effectively reduce noise and provide users with a more comfortable operating environment.

inquiry now add to cart

Specifications

Vehicle Main Dimensions

Overall dimensions (L x W x H) mm	10000×2500×3710
Carriage Size (L x W x H) mm	5600×2300×1100
Wheel base (mm)	3225+1350
Wheel track (front/rear) (mm)	2022/1800
Approach/Departure angle(°)	10/16

Weight Specifications

Tare Weight	13200 kg
Payload	25000 kg
Front axles loading capacity	1x7000 kg
Rear axles loading capacity	2x16000 kg

Engine Specifications

Brand	Sinotruck
Model	WD615.69
Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)	290 HP
Emission standard	Euro II

Other Components

Gearbox	HW15710, 10 Forwards gear & 1 reverse gear
Steering	ZF8098, from Germany
Tire	12.00R20 all radial steel tires
Clutch	Reinforced diaphragm clutch, diameter 430 mm

Crane Specifications

Brand	XCMG
Type	Knuckle
Max lift capacity	8000 kg
Max working radius	10 m
Max lifting height	12.5 m
