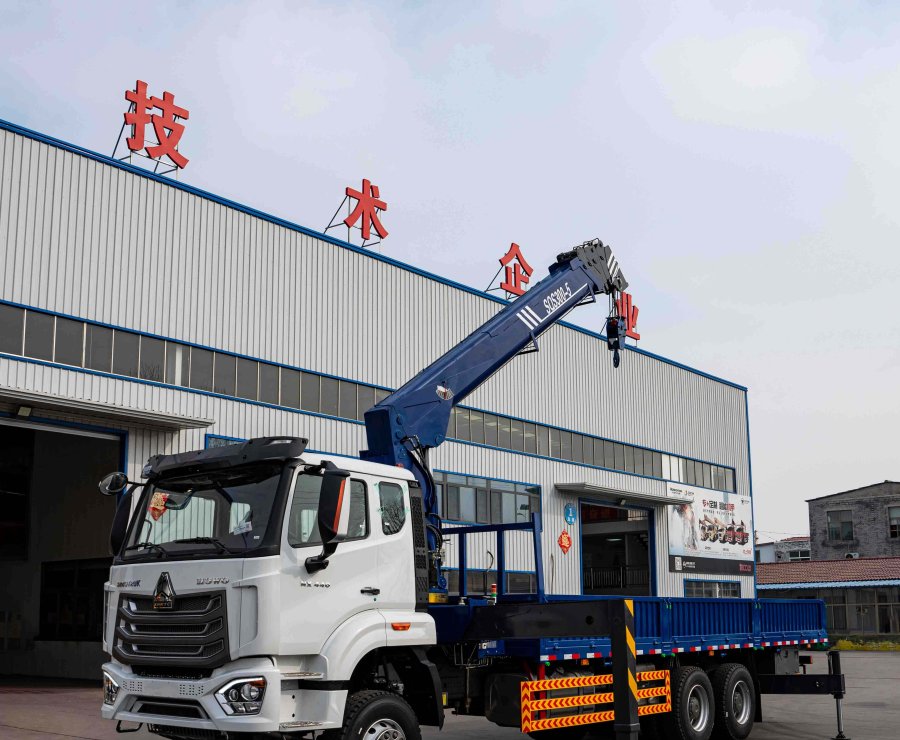

SINOTRUK HOWO NX (HAOHAN) 6×4 Mounted Crane Truck

Product Description:

This HOWO NX 6*4 Hohan Hydraulic Knuckle Boom Truck Mounted Crane offers versatile lifting capacities ranging from 2 to 16 tons and a maximum lifting moment of up to 43.2 T.M. Equipped with a powerful WD615.47 engine delivering 371 hp, it ensures reliable performance for heavy-duty tasks. The truck features a durable SINOTRUK chassis, HW19710 manual transmission with 10 forward gears, and a robust cargo body measuring 8000*2300*600 mm. With advanced hydraulic systems operating at pressures up to 28 MPA and a fuel tank capacity of 300-400L, it is ideal for logistics transportation.

inquiry now add to cart

Specifications

Engine
Model	WP10.380E22
Horsepower	380HP
Emission	Euro 2
Other	4-stroke direct injection diesel engine
Cabin
Model	H77L,with one bed, A/C
Other	Four full floating suspension + suspension device
Gearbox
Model	HW19710, 10 forward and 2 reverse gear
Max.Input Torque	1900NM
Tire
Model	315/80R22.5,10+1 pcs
Brand	TRIANGLE
Fuel Tank
Model	400L
Material	Aluminum alloy
Drive Axle
Model	HC16
Load Capacity	Per axle loading capacity is 16,000kg, total 2x16,000kg
Brake Type	Drum brake
Front Axle
Model	VGD95
Load Capacity	Per axle loading capacity is 9,500kg, total 1x9,500kg
Brake Type	Drum brake

Inquiry Now

Product Name:SINOTRUK HOWO NX (HAOHAN) 6×4 Mounted Crane Truck
