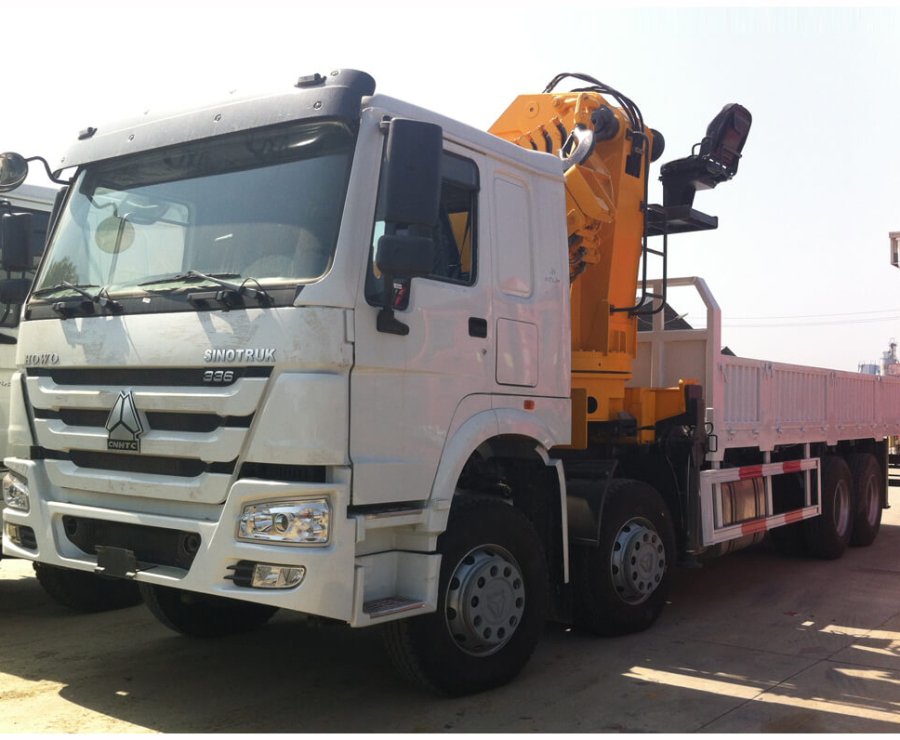

SINOTRUK HOWO 8×4 Mounted Crane Truck

Product Description:

One of the standout features of the Sinotruk HOWO 8X4 Truck Mounted Crane is its impressive lifting capacity. With a maximum load capacity of up to 30 tons, the truck mounted crane can easily transport even the heaviest of loads. Additionally, it has a maximum boom length of up to 40 meters, making it ideal for handling large cargo containers and other oversized cargo.

inquiry now add to cart

Specifications

Cab type	HOWO HW76
Overall dimension (L×W×H)(mm)	11900×2550×3988
Cargo Body size(L×W×H)(mm)	8000X2300X800 or customized
Steel thickness of Carriage	Floor:4mm, Side:2mm
Drive type	8*4(12 wheels)
Steering type	Left or Right Hand Drive, ZF8118 hydraulic power steering
Max. Drive Speed (km/h)	90
Curb weight (kg)	Approx. 17600kg
Chassis manufacturer:	SINOTRUK
Engine Model	WEICHAI WP12.400E201, Euro 2, Diesel, 400hp
Transmission	Manual, HW19710, 10F & 2R
Front/rear axle load(kg)	VGD95, 2*9000KG/ HC16, 2x16000 KGS
Brakes	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Tire	12.00R22.5, 12 tires with 1 spare tire
Fuel Tank(L)	400
Crane Model	XCMG, Telescopic/Folding arm type/straight arm type
Max lifting capacity（KG）	10,000KG, 12,000KG, 14,000KG, 16,000KG or customized
Maximum Elevation Angle	75
Rated Payload (KG)	40,000 or customized

Inquiry Now

Product Name:SINOTRUK HOWO 8×4 Mounted Crane Truck
