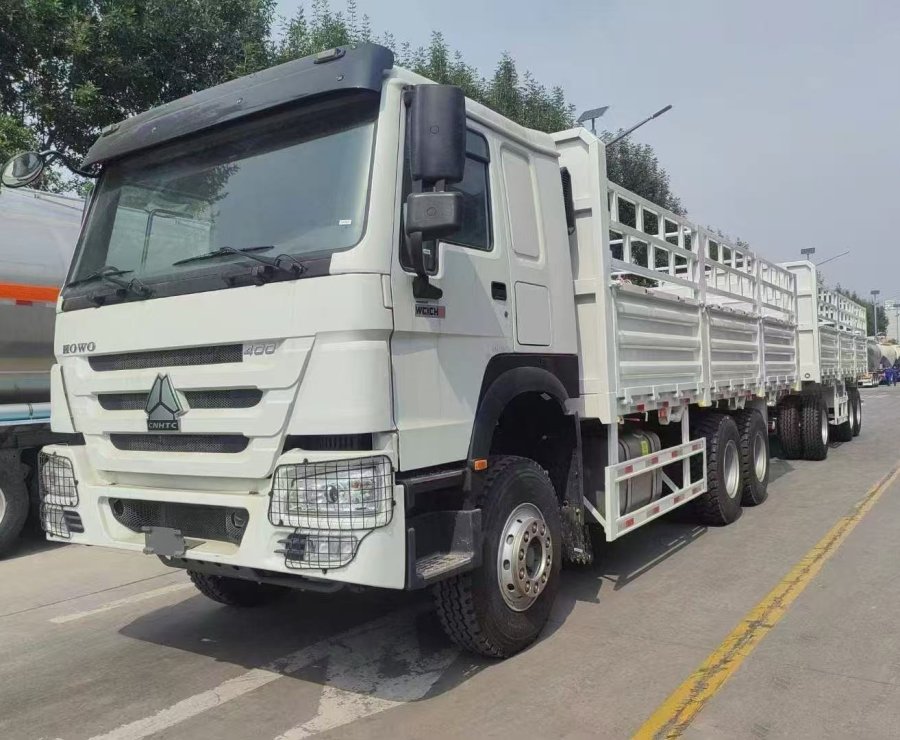

SINOTRUK HOWO 6X4 Cargo Truck with Trailer

Chassis Model

ZZ1257N4347B1

Driving Type

LHD (RHD is optional)

Cabin

HW76 cab, two seats, one Sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.

Engine

Make: WICHAI

Diesel 4-stroke direct injection diesel engine

Engine model: WP12.400E201, Euro II, 400 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 11.596 L

Transmission

HW19710, 10F & 2R

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, model ZF8118, hydraulic steering with power assistance

Front Axle

VGD95, 1x9000 KGS

Steering with double T-cross section beam

Rear Axle

HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:4.42

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20, Radial (Steel Wire) Tires, 10+1 Pics

Fuel Tank

400L + 400L, Double Fuel Tanks

Trailer Package

With the Rear Trailer Package System

Cargo Body

Cargo Body Size: 7000X2400X1500mm (Length*Width*Height)

Board Height: 800mm board type + 700mm fence type

Trailer Package

With the Rear Draw Bar Trailer Package System

Overall Dimension

10500*2500*3400 mm
