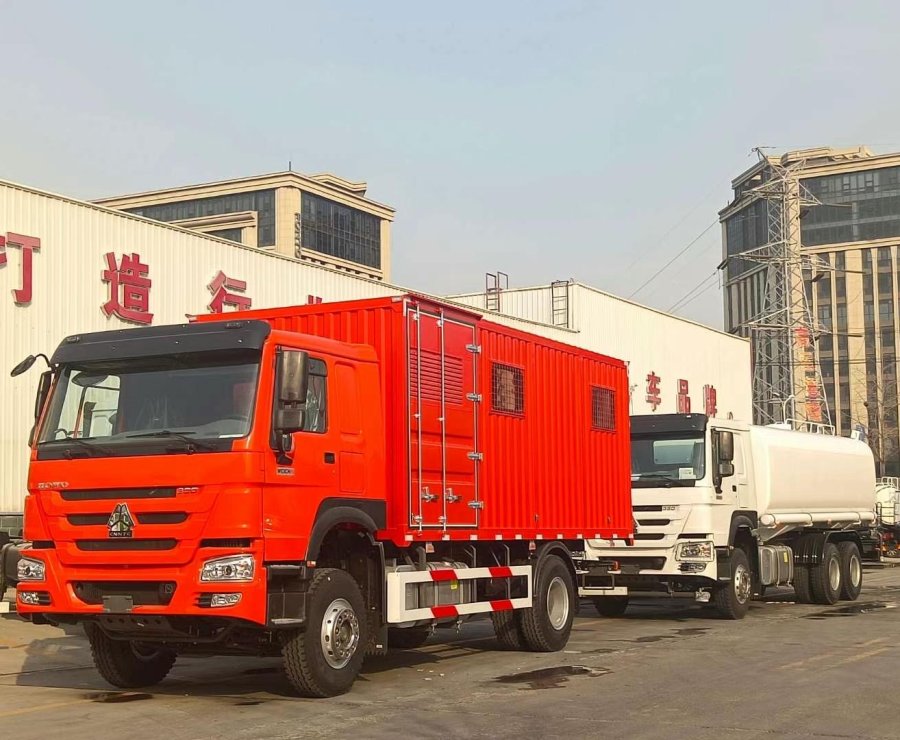

SINOTRUK HOWO 6×4 Van Box Truck

Product Description:

Sinotruk Howo NX 6×4 Cargo Truck launched by Sinotruk (CNHTC) is a flagship model specially designed for efficient logistics, which is equipped with MC11.44-60 engine adopting German MAN technology, with an output of 440 hp, coupled with a 12-gear HW25712XSTL gearbox, the fuel consumption is as low as 26L/100km under the condition of 80km/h equal working speed.

inquiry now add to cart

Specifications

Cabin	Driving type 6x4 LHD
Cabin	HW76 cab, with A/C and one bed, 70°hydraulically tillable to the front
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	10300×2500×3670
	Wheel base (mm)	4625+1350
	Wheel track (front/rear) (mm)	2022/1830
	Approach/Departure angle(°)	19/21
Weight in KGS	Tare Weight	13000
	payload	25000
	Front axles loading capacity	1x7000
	Rear axles loading capacity	2x16000
Max. driving speed（km/h）		85
Engine	Brand	Sinotruk
	Model	WD615.69
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power (HP)	336
	Emission standard	Euro Ⅱ
Gearbox	HW19710, 10 Forwards gear & 2 reverse gear
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)	400
Tire	12R22.5 tubeless tyre 11 pcs including one spare tire
Brakes	Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Box size	770023002000 mm, made of corrugated iron, side and rear door openable.

Inquiry Now

Product Name:SINOTRUK HOWO 6×4 Van Box Truck
